Pro-Ject MC Step Up Box DS3 B

Pro-Ject MC Step Up Box DS3 B - your key to a premium, balanced sound experience

The output level of MC pickups is very low compared to a MM (Moving Magnet) it is approximately 10 times lower. This means you need a special phono amplifier. A higher gain is needed to utilize the signals, which can result in a higher noise level and distortion. The solution is the MC Step Up Box DS3 B.

The MC Step Up Box DS3 B works very differently from a regular phono amplifier. The ratio of the windings in the transformer determines the amplification factor. Since it is completely passive and does not require external power, no additional power can be generated. The increase in voltage is achieved by a corresponding reduction in current.

Since there is no amplification, the MC Step Up Box DS3 B has a remarkable noise performance and a very low degree of distortion. The sound with a Step-Up Transformer will be more lively, dynamic and natural.

Designed and handcrafted in Europe

The new Step Up Box DS3 B is carefully designed and handcrafted in Europe. Pro-Ject's goal is to develop a technically flawless device in a case that is only as large as necessary to save on raw materials. Due to the timeless design and robust aluminum construction, the MC Step Up Box DS3 B is built to last forever.

With high-quality materials and components as well as well-thought-out design, Pro-Ject wants to be a pioneer in the industry.

Lundahl LL 1678 - Balanced in/out

For the MC Step Up Box DS3 B, Pro-Ject uses high quality Lundahl LL 1678 audio transformers to ensure that every detail is preserved. You can set the transformer ratio (gain) at the touch of a button, either at 24dB or 30dB.

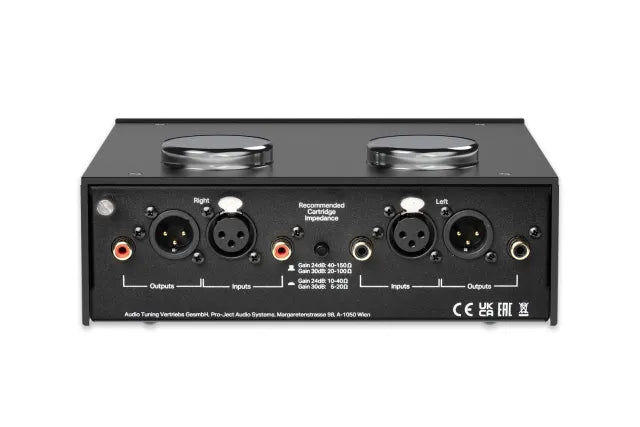

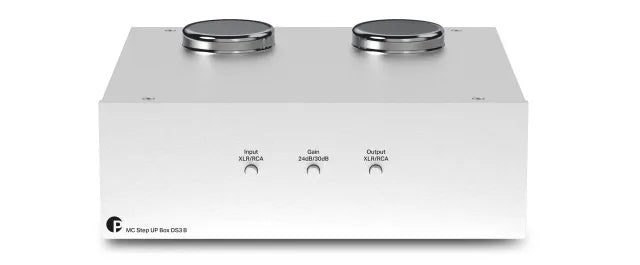

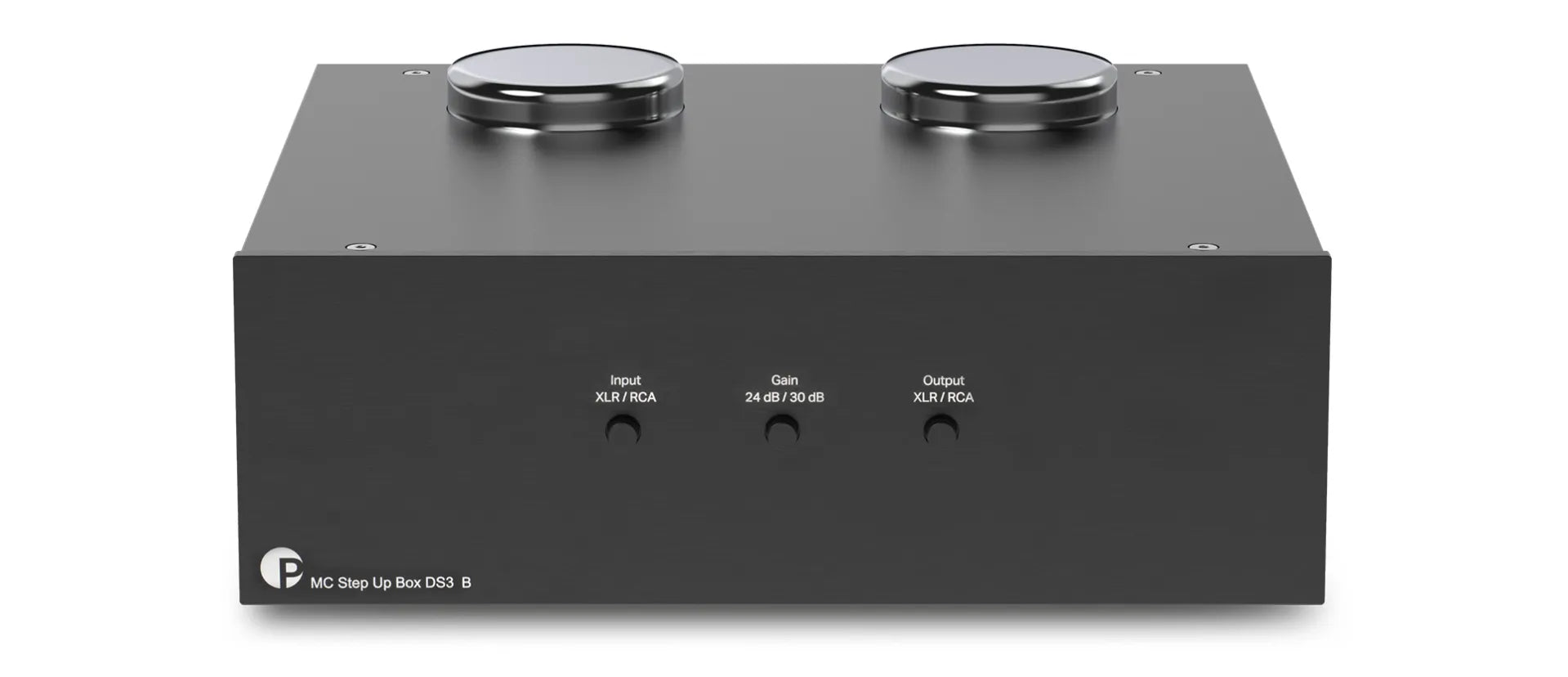

Use the single-ended RCA connectors or go balanced with XLR inputs and outputs and benefit from a noise-free signal transfer. Switch between inputs and outputs via the push buttons on the front.
