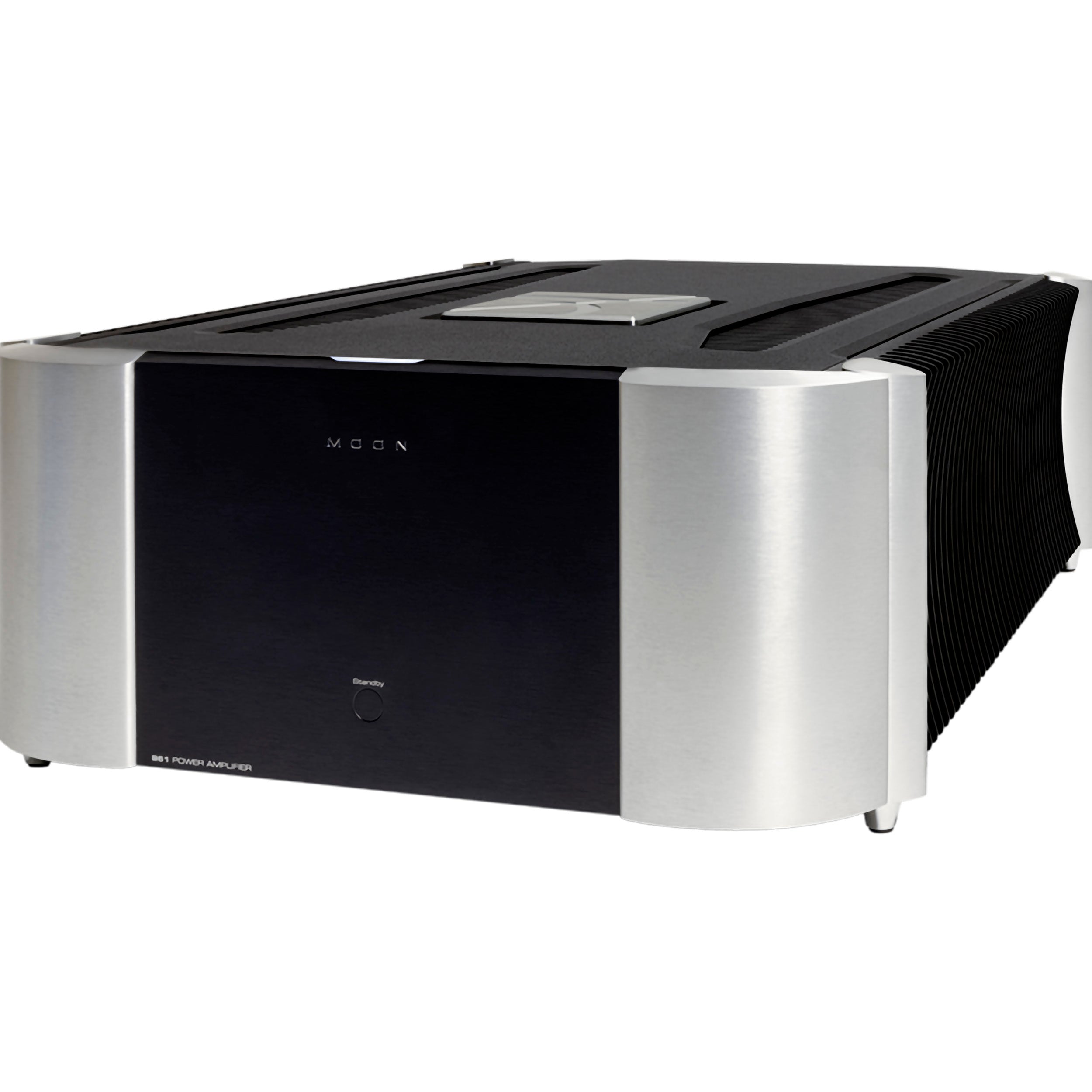

Moon 861 Power Amplifier

MOON 861 POWER AMPLIFIER – PURE PERFORMANCE WITH AN AUDIOPHILE HERITAGE

MOON 861 is a power amplifier that builds on the legacy of the iconic MOON 888 while also drawing on the holistic design philosophy behind the North Collection. With its combination of massive power, advanced circuit technology, and timeless design, the 861 is created to deliver sound with authority, transparency, and unmatched dynamics.

With 300 watt per channel into 8 ohms and a full 600 watt into 4 ohms, the 861 provides a solid foundation for even the most demanding speakers. In mono configuration, it delivers up to 800 watt into 8 ohms, offering flexibility for both high-end stereo and multichannel setups.

HIGHLIGHTS

• 300 W per channel into 8 ohms / 600 W per channel into 4 ohms
• Up to 800 W in mono configuration
• MOON Distortion-Cancelling Amplifier (MDCA) technology
• No global feedback for maximum musicality
• Dual-mono construction and dedicated mono toggle
• Exclusive MOON transistor design
• MOONLink for integration into North Collection systems
• Elegant multicolor LED indicator

TECHNOLOGY AND TRANSPARENCY

MOON 861 is based on a dual-mono architecture, where each channel is driven by a separate circuit to achieve maximum channel separation. This results in a more precise and natural reproduction of the stereo image.

The MDCA technology reduces distortion to an absolute minimum—measured at just 0.001% at full output power—while the design without global feedback provides a more open and musical sound. With a signal-to-noise ratio of 119 dB and a damping factor of 900, even complex musical passages gain a rare combination of control, clarity, and refinement.

DESIGN AND QUALITY

MOON 861 is just as impressive physically as it is sonically. With a chassis measuring 48 cm in width, 21 cm in height, and 60 cm in depth, along with a weight of a full 70 kg, it exudes uncompromising quality and robustness.

On the front, there is a discreet multicolor LED indicator that provides status information without disturbing the minimalist design. Power consumption is optimized so that the amplifier uses 85 watt at idle and just 1.25 watt in low-power standby, combining high-end performance with modern energy efficiency.

MOON 861 Power Amplifier is created for audiophiles who want both raw power and delicate finesse in the same unit. It combines the technological heritage of MOON’s most legendary designs with a contemporary design that makes it a natural partner for the rest of the North Collection.
