English Electric 16Switch

The English Electric 16Switch is a two-zone, dual power supply, 16-port Gigabit Ethernet (GbE) switch, optimized for music and video streaming

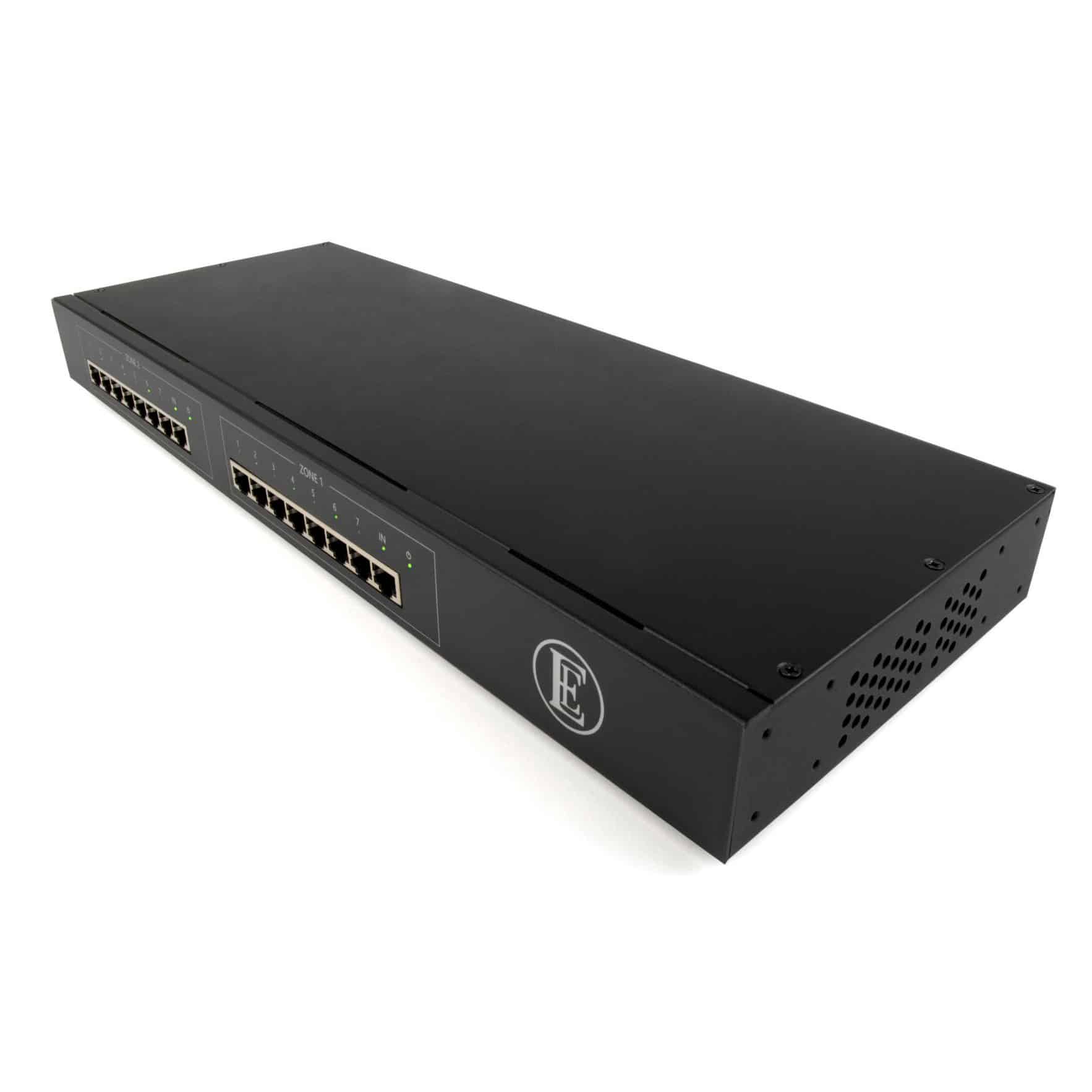

The 16Switch brings the proven benefits of the EE 8Switch to larger networks and features 2x independent rows of eight high-quality Gigabit Ethernet ports, which can be used as two independent eight-way switches or connected and used as one 16-way device.

The 16Switch has been designed to offer high noise isolation and low electrical noise. It uses two highly accurate customized TCXOs (Temperature Compensation Crystal Oscillators) with an accuracy of 0.1ppm (far higher than normal crystals and higher than a normal TCXO), allowing the 16Switch to generate higher-accuracy network signals, which in turn, help provide more stable data transmission.

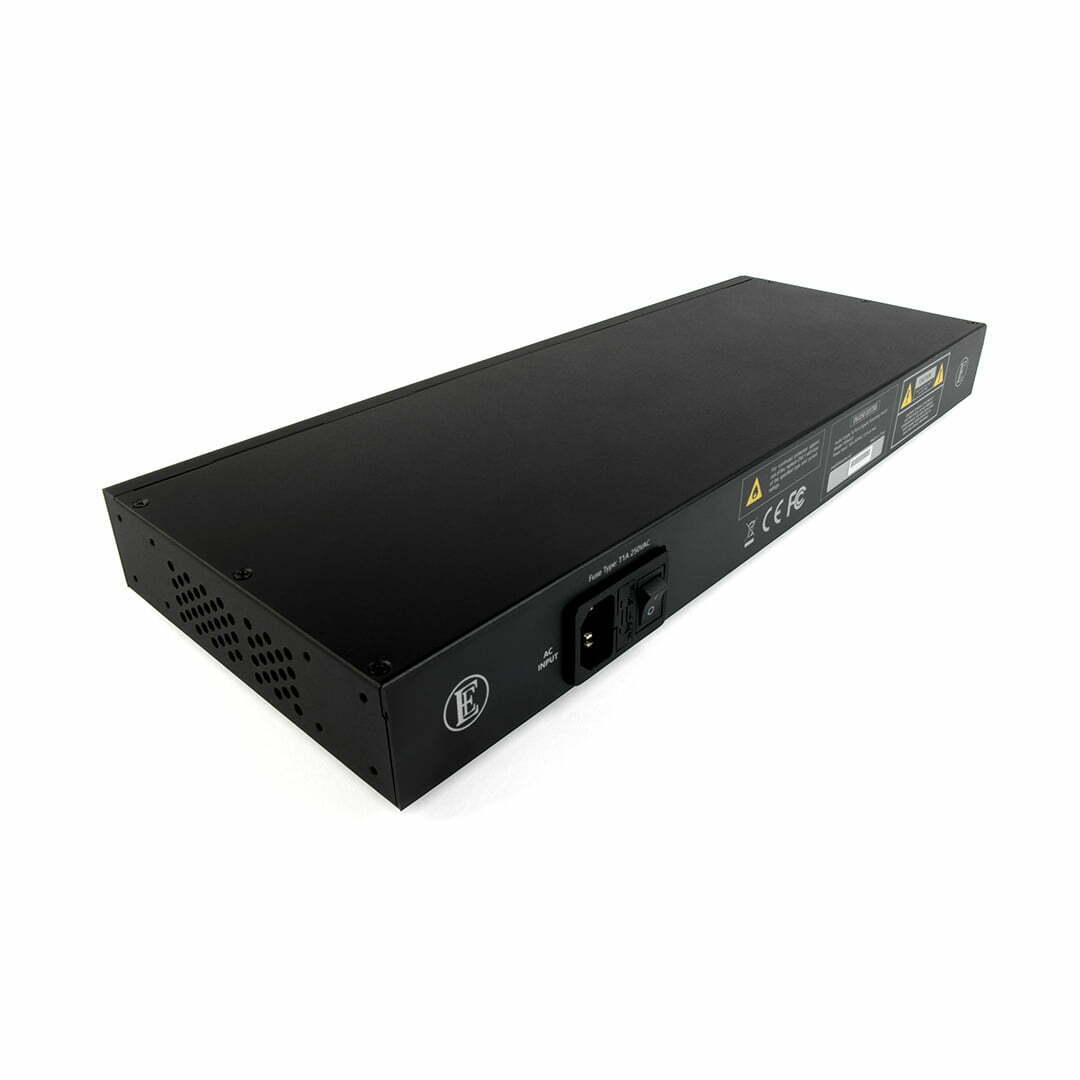

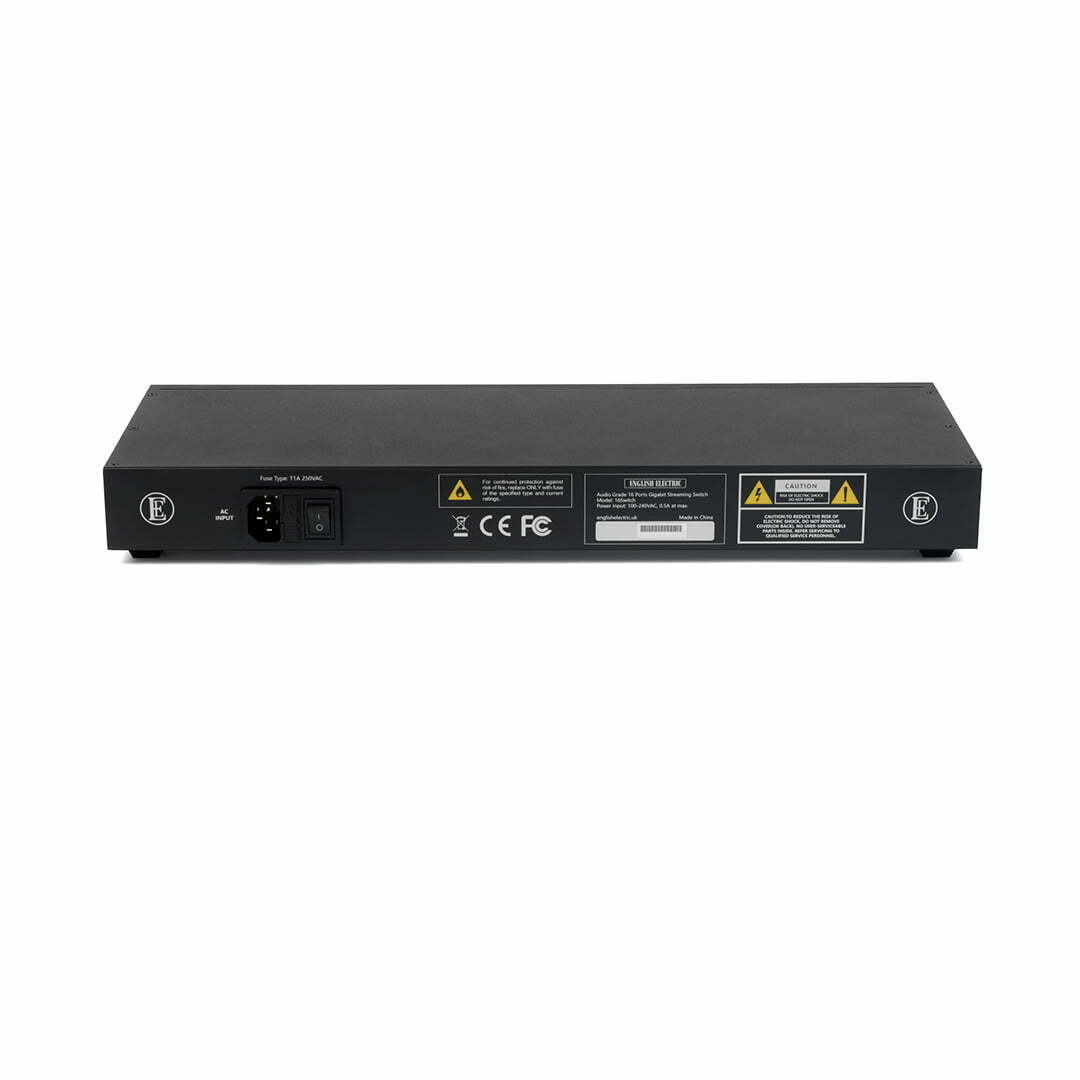

The clock source is isolated for each network zone, allowing the TCXO modules to remove power-related noise from the switch circuit. Power is delivered by two independent isolated power supplies feeding each of the eight-port switch modules; the clean supply allows better network signal quality, ultimately driven by the highly accurate TCXO clock technology. When run as two independent power zones, it allows the performance-critical audio/video equipment to be run independently from the more noisy digital equipment also present on the network.

The combined technologies and attention to detail in the 16Switch result in more stable and accurate network signals and clock circuitry, delivering significantly improved data transmission with measurably reduced jitter errors.
