Aurender MC20 - Master clock for digital music systems

Aurender MC20 is a master clock and word clock generator developed for advanced digital music systems, where precise timing and synchronization play a central role. It provides a shared clock signal to music servers, DACs, and other digital components, so the entire system operates from the same time reference.

The purpose is to create optimal operating conditions for the digital circuits and reduce jitter in the signal path. The result is more stable and precise signal processing across the system’s digital devices.

Highlights

• Rubidium-based 10 MHz master clock
• Separate OCXO word clock modules
• Four 10 MHz clock outputs
• Four word clock outputs
• Supports both 44.1 kHz and 48 kHz clock families
• SPDIF Sync function
• Compatible with Aurender and third-party products
• Developed for advanced digital music systems
• Shared time reference for the entire system

Shared time reference for the entire system

In digital audio systems, multiple devices often work together on signal processing. Music servers, DACs, and digital processors all depend on precise timing to deliver optimal digital sound quality.

MC20 provides a shared clock signal to the connected components and helps keep the entire system synchronized. When all devices operate from the same reference, it creates a more stable foundation for digital signal processing.

Rubidium clock focused on stability

At the core of the MC20 is a rubidium-based 10 MHz clock module. Rubidium technology is used in systems where very high precision and long-term stability are crucial.

The stable clock reference contributes to more precise timing in the connected devices and reduces variations in signal processing. This provides a solid foundation for digital audio systems where synchronization and accuracy are high priorities.

Separate OCXO word clocks

In addition to the rubidium clock, the MC20 includes two separate OCXO-based word clock generators. These can deliver both 44.1 kHz and 48 kHz clock signals as well as their multiples.

This provides broad compatibility with DACs and digital components that use word clock instead of a 10 MHz master clock. The MC20 can therefore be integrated into many different digital audio setups.

Developed for advanced digital systems

The MC20 can supply clock signals to multiple devices at the same time. The four 10 MHz outputs and four word clock outputs provide great flexibility when building complex digital music systems.

This makes it suitable for both Aurender products and a wide range of compatible third-party products, where precise synchronization between multiple digital devices is desired.

SPDIF Sync for automatic synchronization

The built-in SPDIF Sync function makes it possible to automatically adapt the word clock signal to the material being played.

This helps the system operate more efficiently and ensures that the clock signal follows the frequency structure of the playback material. The function contributes to more flexible integration in modern digital audio systems.

Built for serious music systems

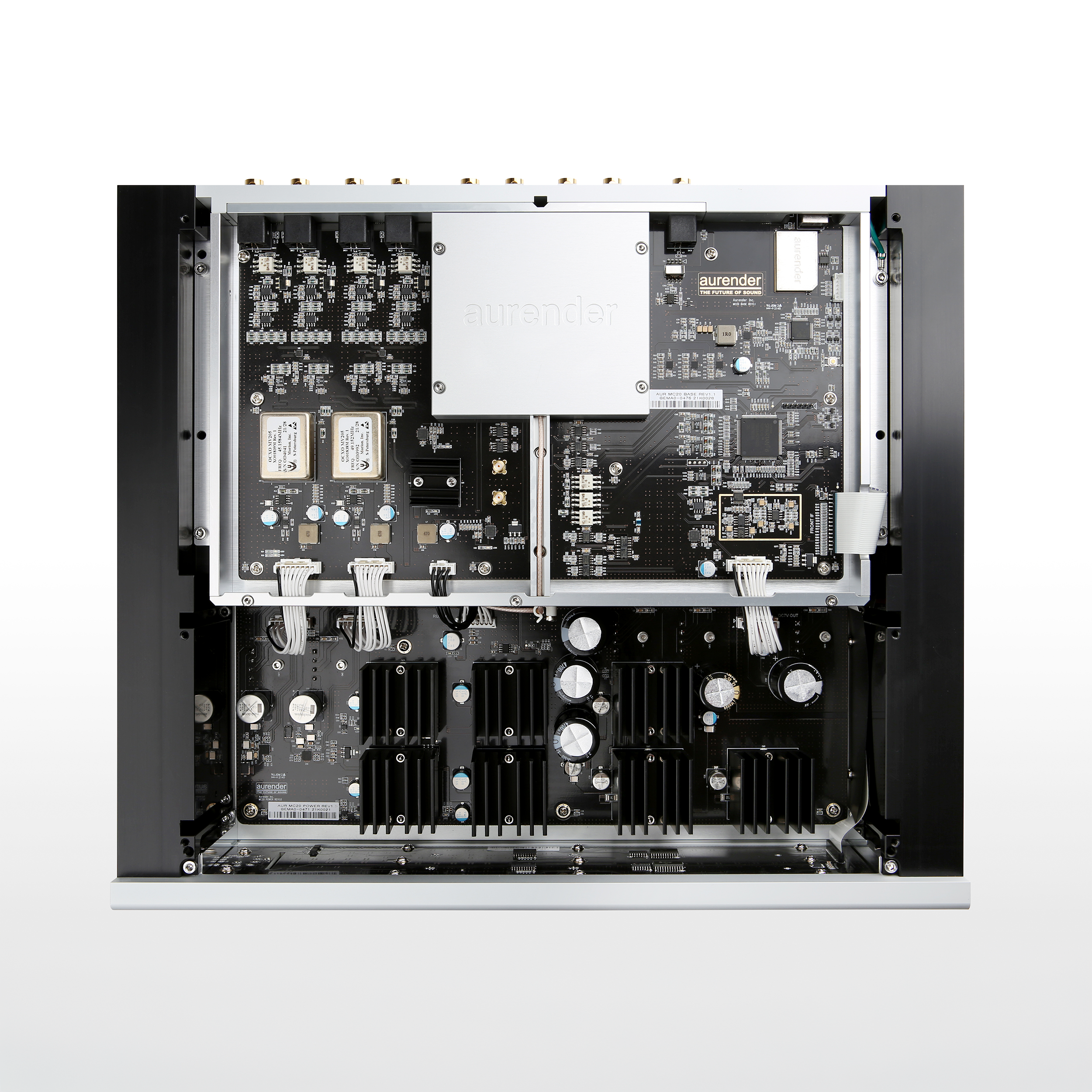

The chassis is made from solid aluminum and combines high build quality with effective shielding of the sensitive clock circuits. The construction is developed with a focus on stable operation and precise signal generation.

The MC20 is designed for music systems where every part of the digital signal path is optimized with a focus on timing, stability, and precision. It is aimed at enthusiasts and system builders who want maximum control over synchronization between their digital audio components.

Did you know?

✓ That you have 30 days of Buy & Try
✓ You get an extra year of warranty when you sign up for our newsletter
✓ You get free shipping over 499,-

Aurender MC20

/ pcs. $38,812.00

Would you like to know more?

FAQ

Hvem er Aurender MC20 til?

Aurender MC20 er udviklet til entusiaster med avancerede digitale lydsystemer, hvor flere komponenter arbejder sammen via eksterne clock-signaler. Den henvender sig til brugere med kompatible musikservere, DAC’er og digitale processorer, som ønsker maksimal kontrol over systemets synkronisering og timing. MC20 er særligt relevant i high-end opsætninger, hvor selv små forbedringer i digital præcision kan være hørbare.

Hvordan adskiller en master clock som MC20 sig fra de clocks, der allerede sidder i DAC’er og streamere?

De fleste digitale lydprodukter har deres egen interne clock, som styrer den lokale signalbehandling. En ekstern master clock som Aurender MC20 fungerer derimod som fælles reference for flere enheder på samme tid. Når hele systemet arbejder ud fra det samme timinggrundlag, kan det skabe mere præcis synkronisering mellem komponenterne og sikre optimale arbejdsbetingelser for den digitale signalbehandling.

Hvilke produkter giver mest mening at kombinere med Aurender MC20?

Aurender MC20 er udviklet til produkter, der understøtter ekstern 10 MHz master clock eller word clock. Det gælder blandt andet udvalgte Aurender-musikservere samt high-end DAC’er og digitale komponenter fra producenter, der tilbyder ekstern clocksynkronisering. Den største værdi opnås typisk i systemer, hvor alle relevante enheder kan arbejde ud fra samme eksterne clock-reference.

Hvornår giver det mening at investere i en ekstern master clock?

En ekstern master clock giver primært mening i systemer, hvor resten af den digitale signalkæde allerede er på et højt niveau. Jo mere opløsning, præcision og gennemsigtighed der er i anlægget, desto større mulighed er der for at udnytte fordelene ved ekstern synkronisering. For mange entusiaster er en master clock derfor et naturligt næste skridt, når de øvrige digitale komponenter allerede er optimeret.

Hvad er forskellen på 10 MHz master clock og word clock?

En 10 MHz master clock fungerer som en overordnet referencefrekvens, som kompatible enheder kan synkronisere sig efter. Word clock anvendes derimod direkte af mange digitale audioenheder til at styre selve lydsignalets timing. Aurender MC20 understøtter begge typer clocksignaler, hvilket gør den fleksibel i både moderne high-end lydsystemer og mere komplekse digitale opsætninger.
