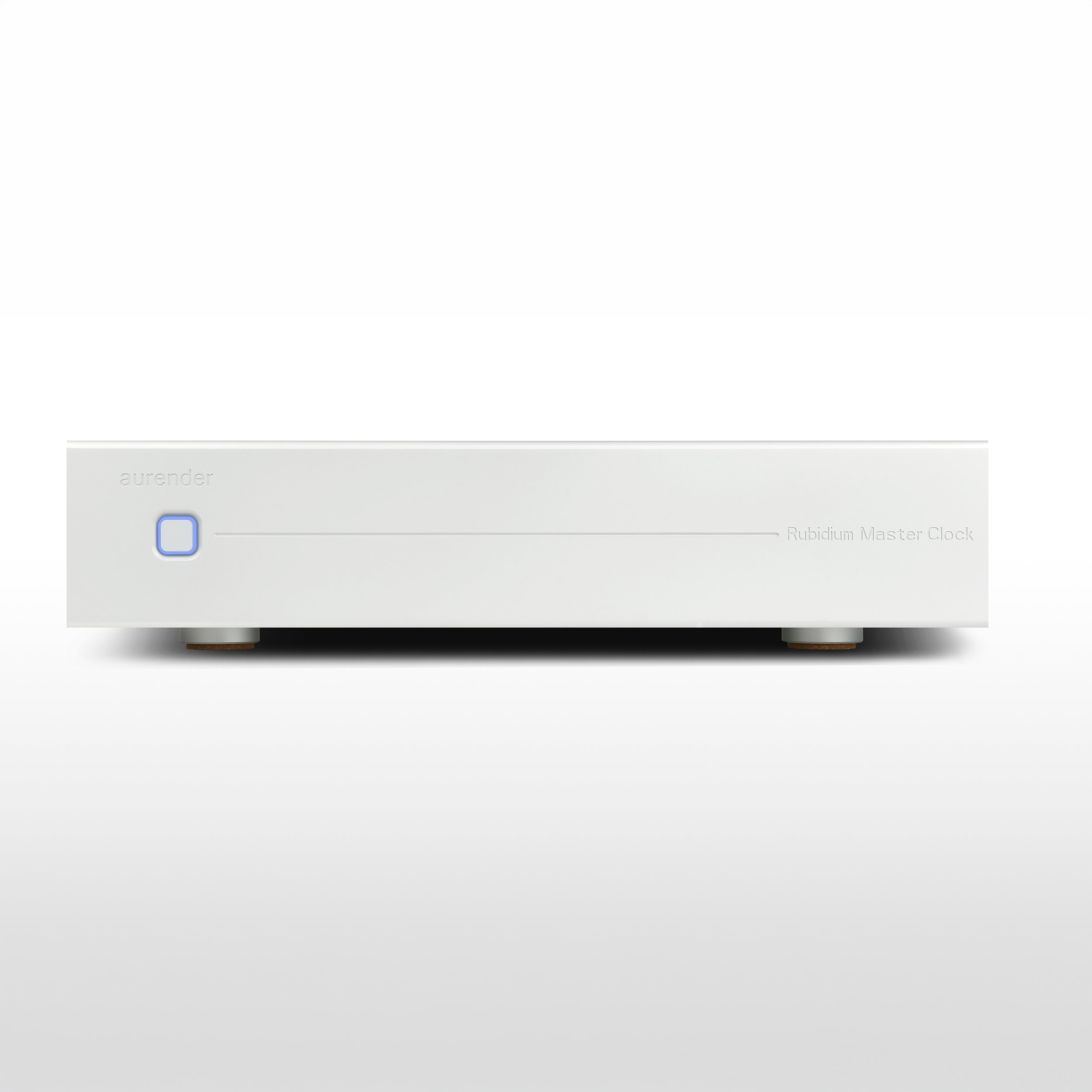

Aurender MC10

Name: Aurender MC10
Brand: Aurender
SKU: 55587527098744
Price: 20178.0 USD
Availability: InStock

SKU: 55587527098744

/ pcs. $20,178.00

Excl. VAT

Color:

Sølv

Variant

In stock. Standard delivery time 1-3 business days

3-year membership guarantee

Price match

30-day full return policy

24-hour support

Free and CO2-compensated delivery*

Payment options

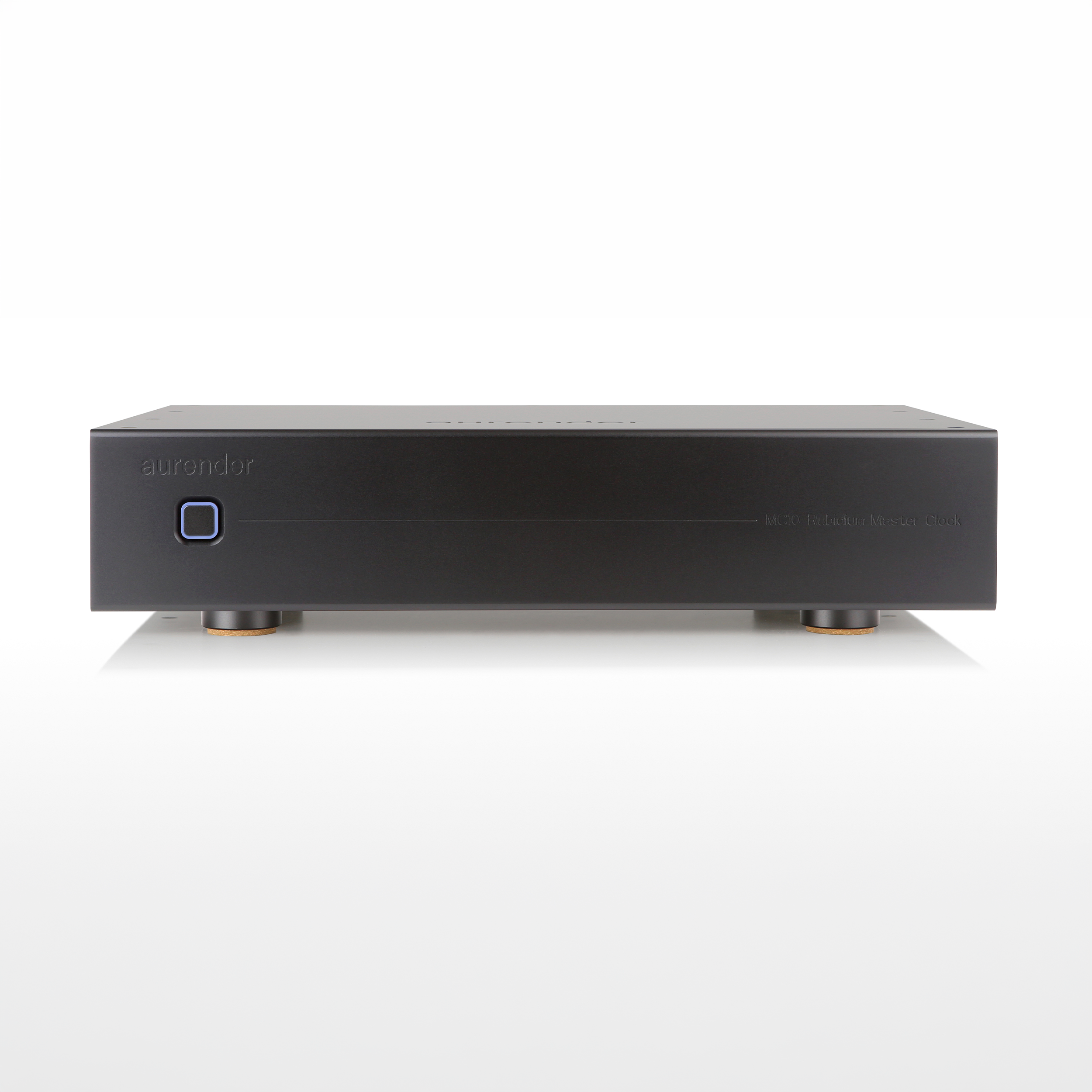

Aurender MC10 - Master clock for music servers and DACs

Aurender MC10 is developed for digital music systems where precise timing is crucial. It delivers a stable 10 MHz master clock signal to compatible music servers and DACs and helps synchronize the digital circuits in the system.

MC10 is built on the same rubidium technology as Aurender's larger MC20, but in a more focused design with the features most modern digital systems use.

Highlights

Rubidium-based 10 MHz master clock

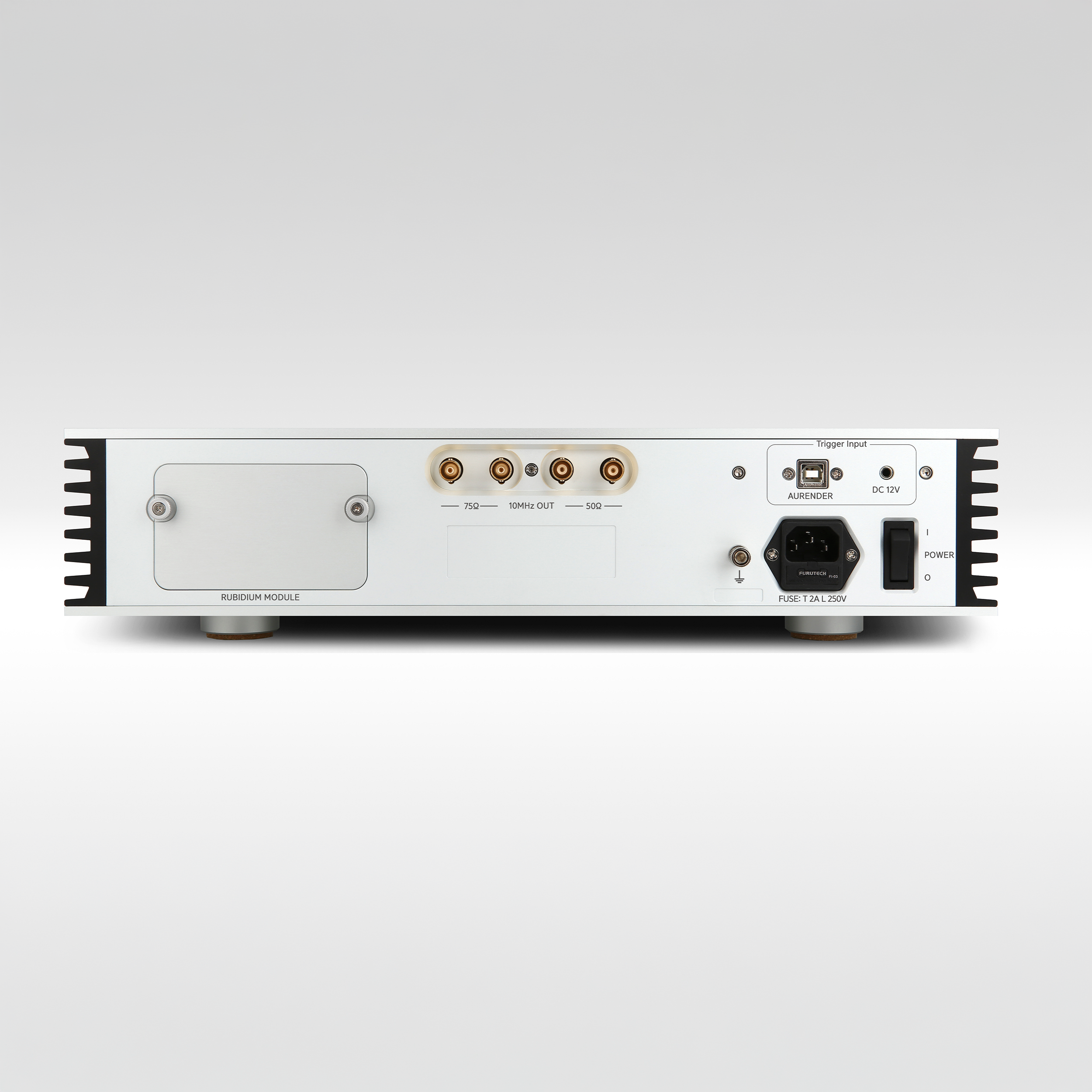

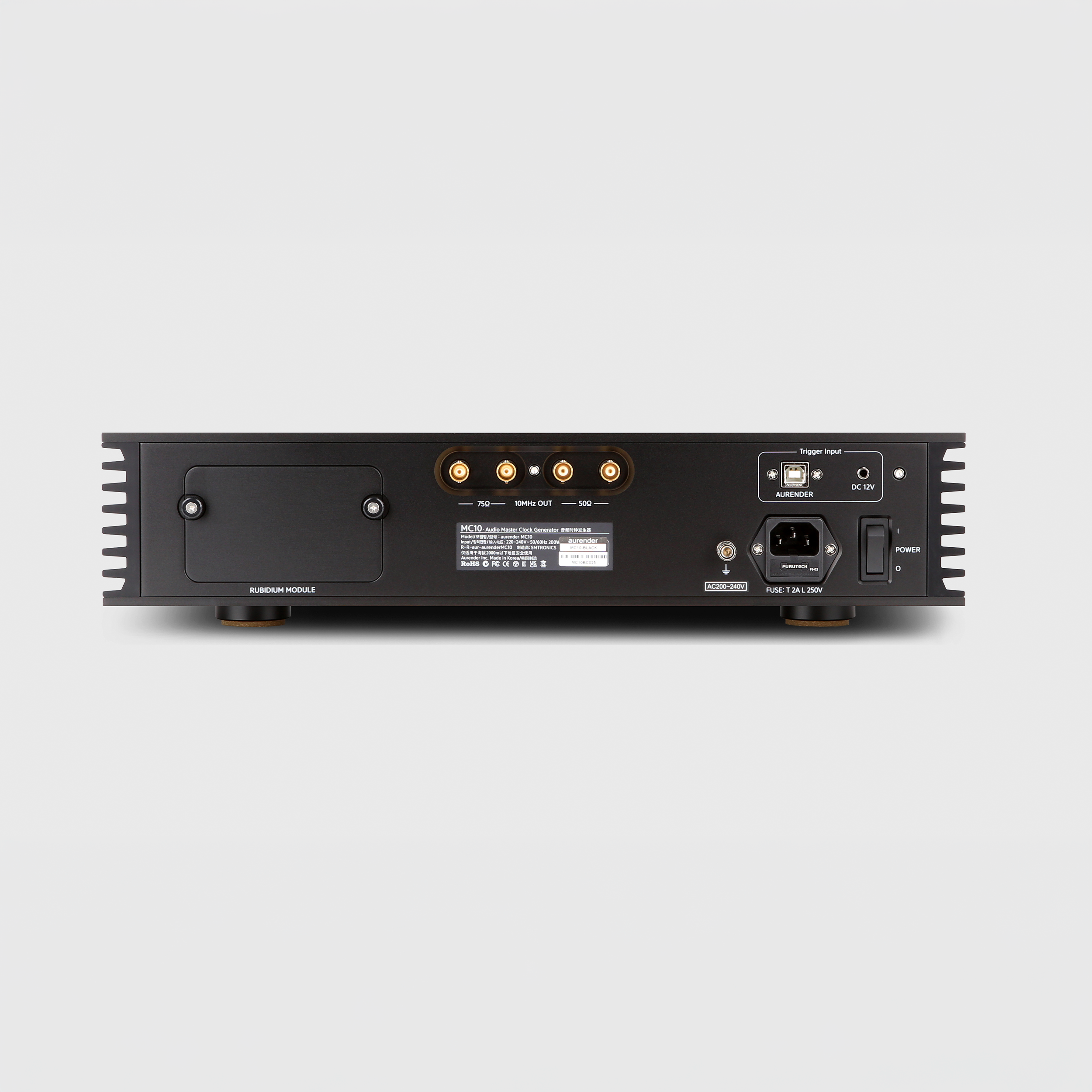

Four clock outputs
Two 75Ω and two 50Ω outputs
Developed for Aurender, Esoteric, CH Precision, and compatible products
Low phase noise and high frequency stability
Compact aluminum chassis
Can be used with both music servers and DACs
Built on the same rubidium platform as MC20

Developed for stable timing in digital music systems

In a digital music system, multiple devices work together on signal processing. Music servers, DACs, and other digital components depend on precise timing to operate under optimal conditions.

MC10 delivers a shared 10 MHz reference signal that helps the connected devices operate from the same time base. The result is more consistent and stable digital signal processing throughout the system.

Rubidium clock with high frequency stability

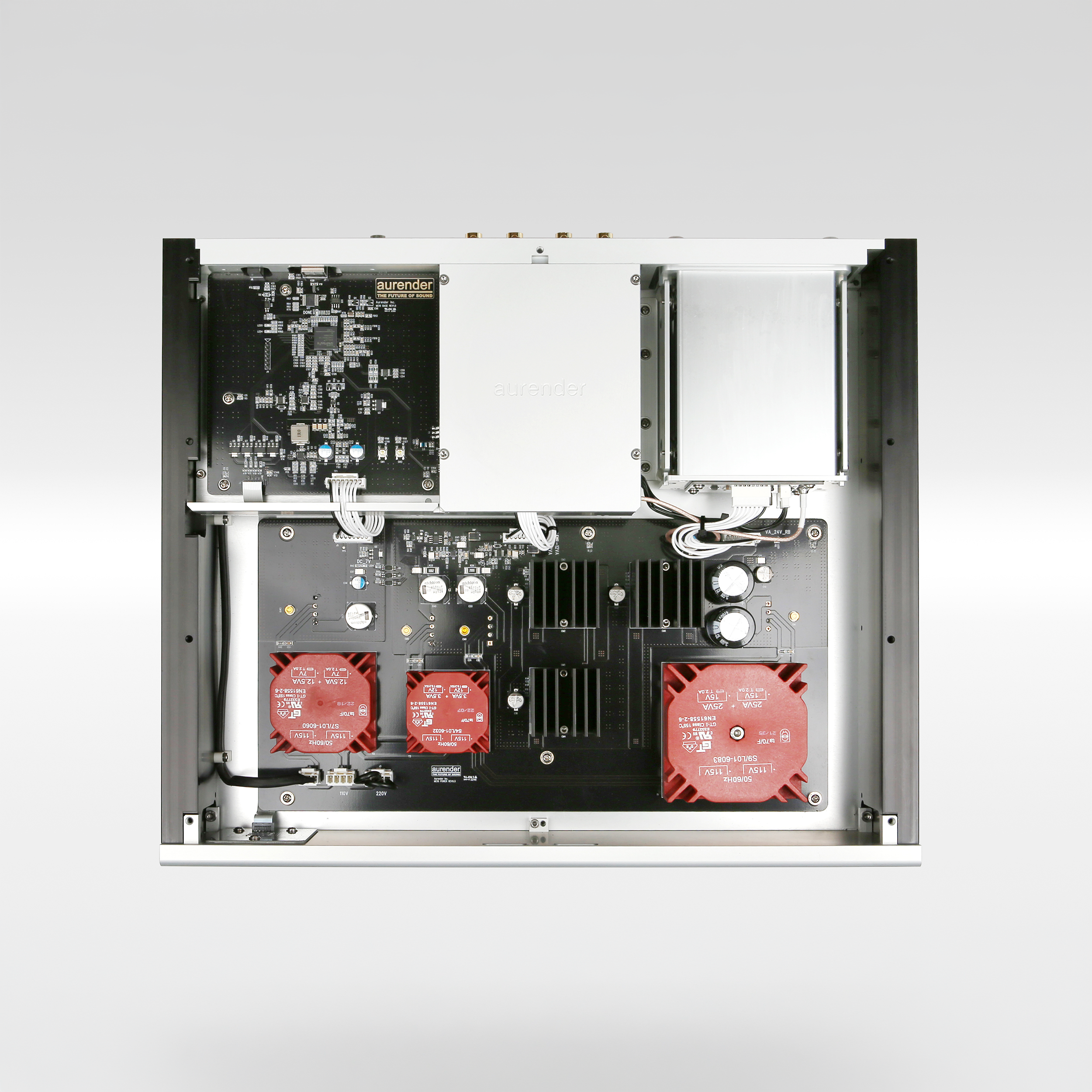

At the core of the MC10 is a rubidium-based clock module. This type of frequency reference is used in systems where high stability and precision are important over long periods of time.

The stable reference reduces timing variations and contributes to more consistent operating conditions for the digital circuits in the system.

A natural complement to Aurender music servers

MC10 is developed for Aurender music servers with a 10 MHz clock input, including the N20, N30SA, W20SE, and AP20.

When the music server is synchronized with an external master clock, the internal digital circuits operate from a shared and stable reference. This provides optimal operating conditions for the subsequent signal processing.

Can be used with compatible DACs

Many high-end DACs support external 10 MHz clock synchronization. Here, the MC10 can serve as a shared reference for both the music server and DAC.

By allowing multiple devices to operate from the same frequency reference, the entire digital signal chain can be synchronized more consistently.

Simple design with a focus on what matters

While the Aurender MC20 also includes separate word clock generators, the MC10 focuses exclusively on the 10 MHz master clock signal.

The simpler design makes the MC10 an obvious solution for the vast majority of modern digital music systems, where 10 MHz clock is the relevant standard.

Built for serious digital audio systems

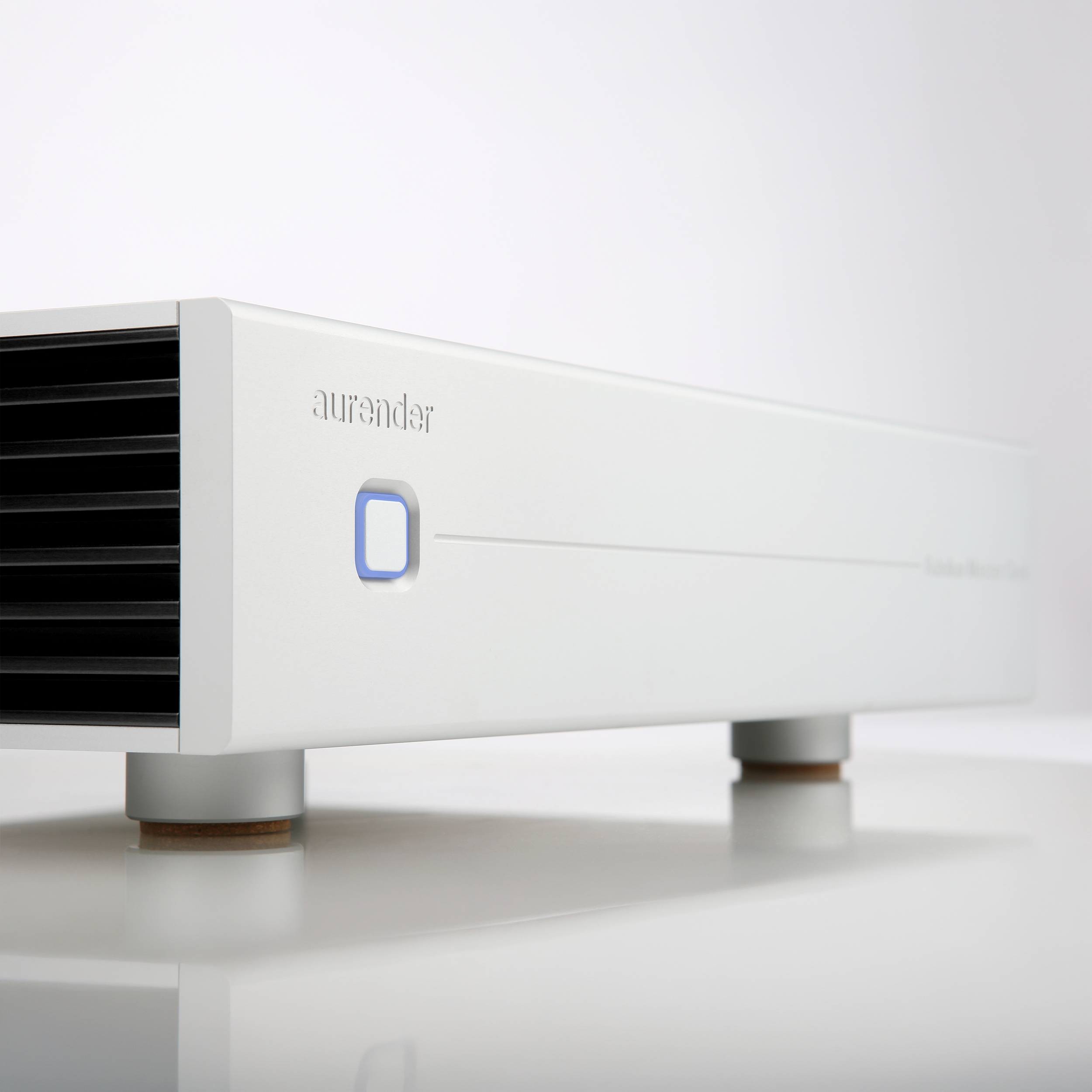

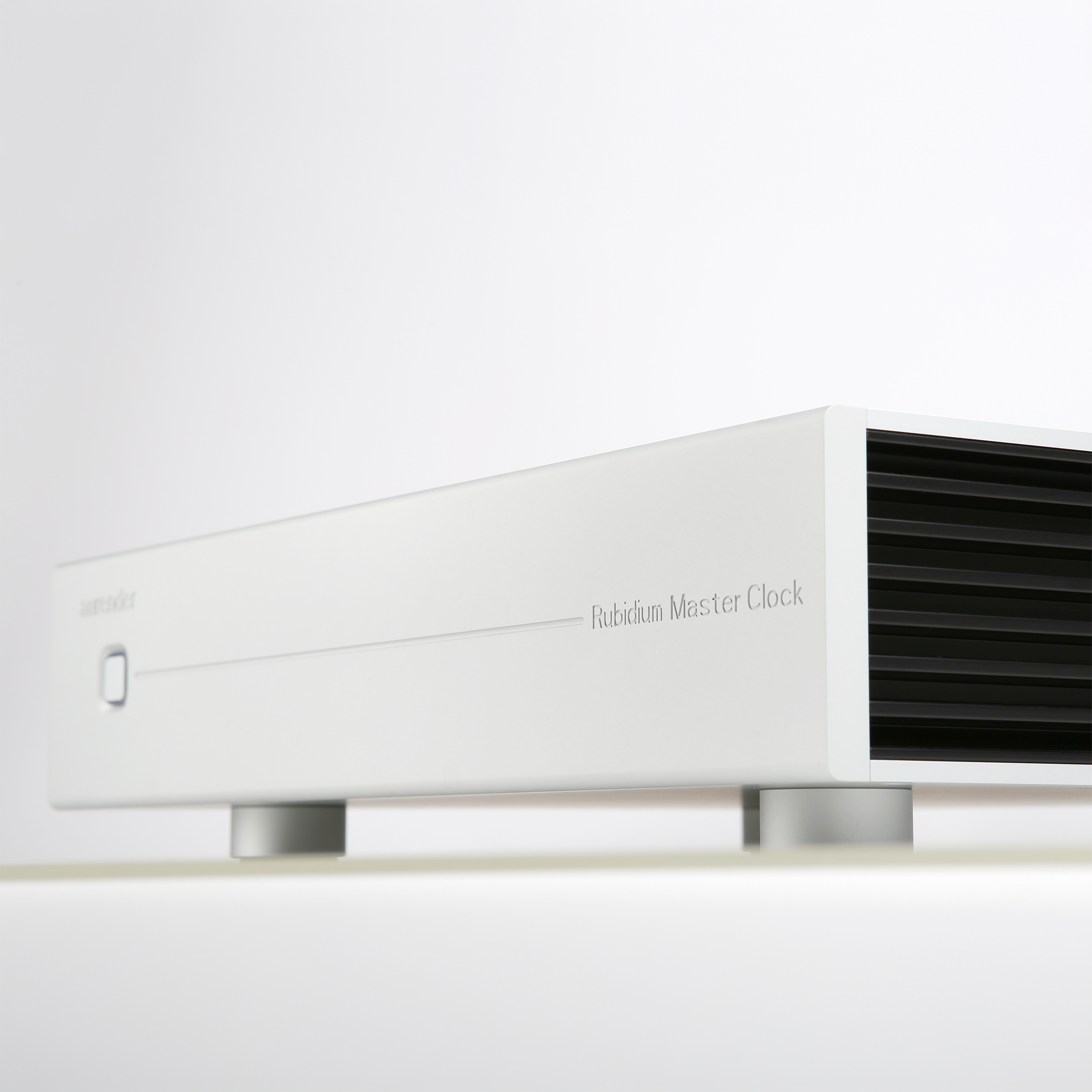

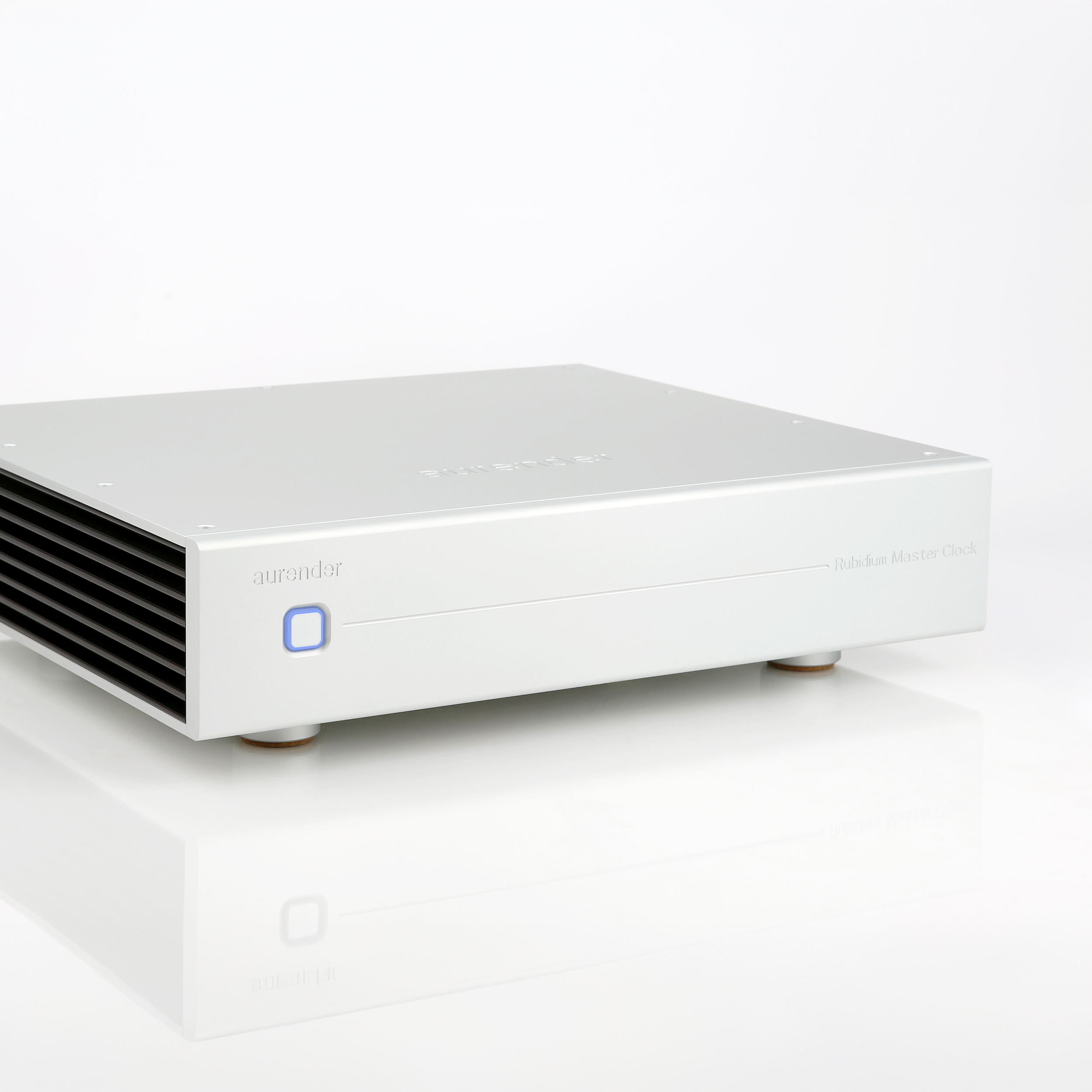

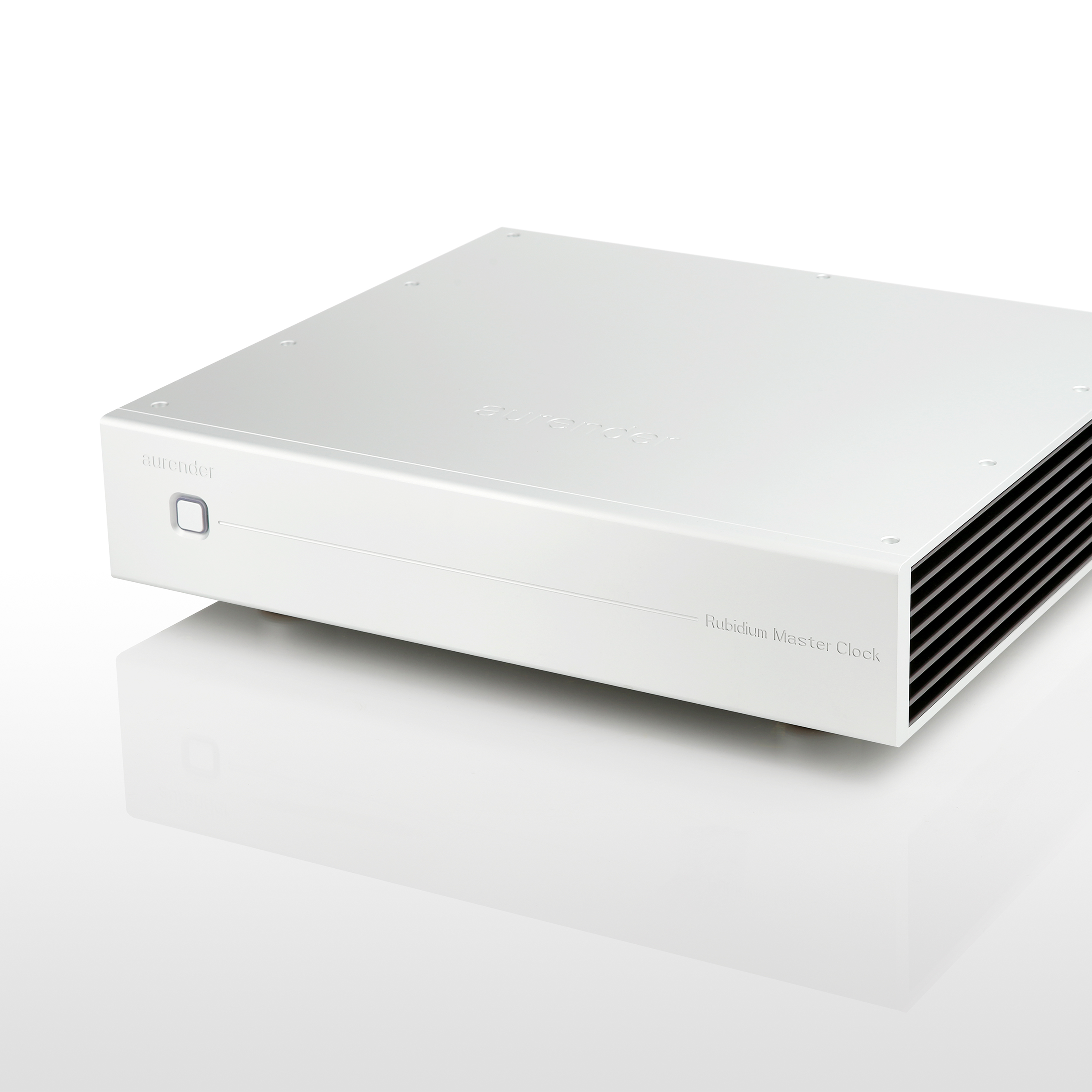

The chassis is made of solid aluminum, which contributes to both mechanical stability and effective shielding of the sensitive circuits.

MC10 is developed for systems where every part of the digital signal path is optimized with a focus on timing, stability, and technical precision.

Did you know?

✓ You have 30 days of Buy & Try
✓ You get an extra year of warranty when you sign up for our newsletter
✓ You get free shipping over 499,-

Specifications

Type:
Master Clock

10 MHz Master Clock-udgange:
4 × 10 MHz (2 × 75 Ω, 2 × 50 Ω, 0,7 Vrms ±10 %)

Fasestøj (Rubidium):
< –130 dBc/Hz (10 Hz)
< –140 dBc/Hz (100 Hz)

Kortsigtet frekvensstabilitet (Rubidium):
<2 × 10⁻¹¹ (1 s)
<1 × 10⁻¹¹ (10 s)
<2 × 10⁻¹² (100 s)

Fasestøj:
< –130 dB/Hz (10 Hz)
< –140 dB/Hz (100 Hz)

Indgangsspænding:
110 V / 220 V

Strømforbrug:
5,7 W (standby)
95 W (opvarmning)
30 W (låst drift)

Dimensioner:
430 × 87 × 370 mm

Vægt:
12,9 kg

View all specifications

Aurender MC10

/ pcs. $20,178.00

Would you like to know more?

FAQ

Hvem er Aurender MC10 til?

Aurender MC10 er udviklet til dig, der har et digitalt high-end lydsystem, hvor musikserver, streamer eller DAC understøtter ekstern 10 MHz master clock. Hvis du ønsker at få mest muligt ud af dit anlæg og optimere timing og signalstabilitet i den digitale afspilningskæde, er MC10 et oplagt valg.

Hvordan adskiller Aurender MC10 sig fra MC20?

Den største forskel er, at Aurender MC10 udelukkende er udviklet til 10 MHz master clock-synkronisering, mens MC20 også har indbyggede OCXO word clock-moduler. Har du et Aurender-system eller en kompatibel DAC med 10 MHz clock-indgang, vil MC10 for de fleste være det naturlige valg, da den leverer de centrale fordele i en enklere løsning.

Hvilke produkter passer Aurender MC10 bedst sammen med?

Aurender MC10 er udviklet til modeller som N20, N30SA, W20, W20SE og AP20, der har 10 MHz clock-indgang. Den fungerer også sammen med DAC'er fra blandt andet Esoteric og CH Precision samt andre digitale komponenter, der understøtter ekstern 10 MHz master clock.

Hvad betyder en ekstern 10 MHz master clock i praksis?

En ekstern 10 MHz master clock sørger for, at de digitale komponenter i dit lydsystem arbejder ud fra den samme, meget præcise tidsreference. Det giver mere stabile arbejdsbetingelser for enhederne og kan bidrage til en mere præcis timing og signalbehandling gennem hele den digitale afspilningskæde.

Kan Aurender MC10 gøre en forskel, hvis min DAC ikke har clock-indgang?

Ja. Hvis din Aurender-musikserver understøtter ekstern 10 MHz master clock, kan MC10 stadig synkronisere den digitale transport. Det betyder, at du også kan opnå fordelene ved en mere stabil digital signalkæde, selv om din DAC ikke har en dedikeret clock-indgang.
