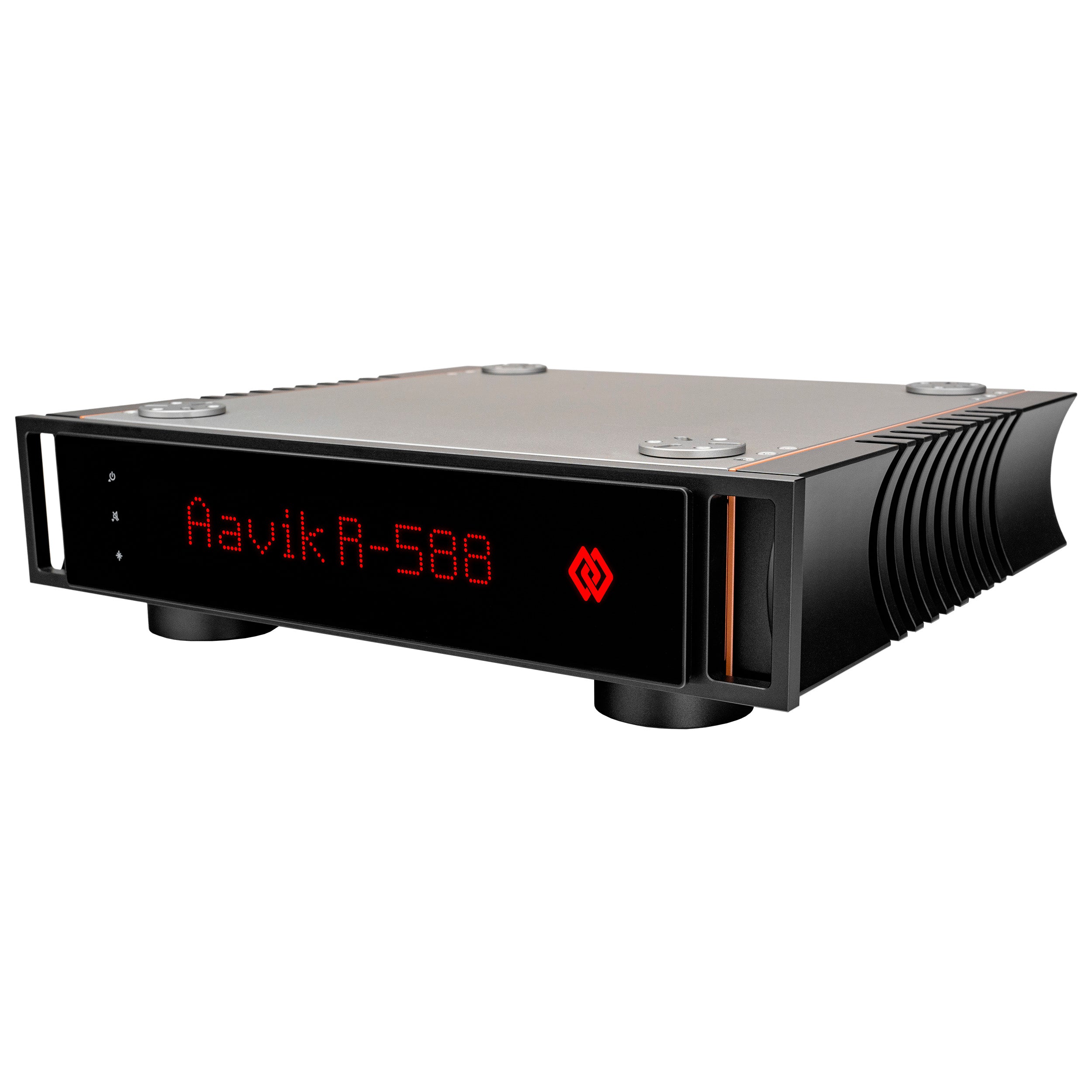

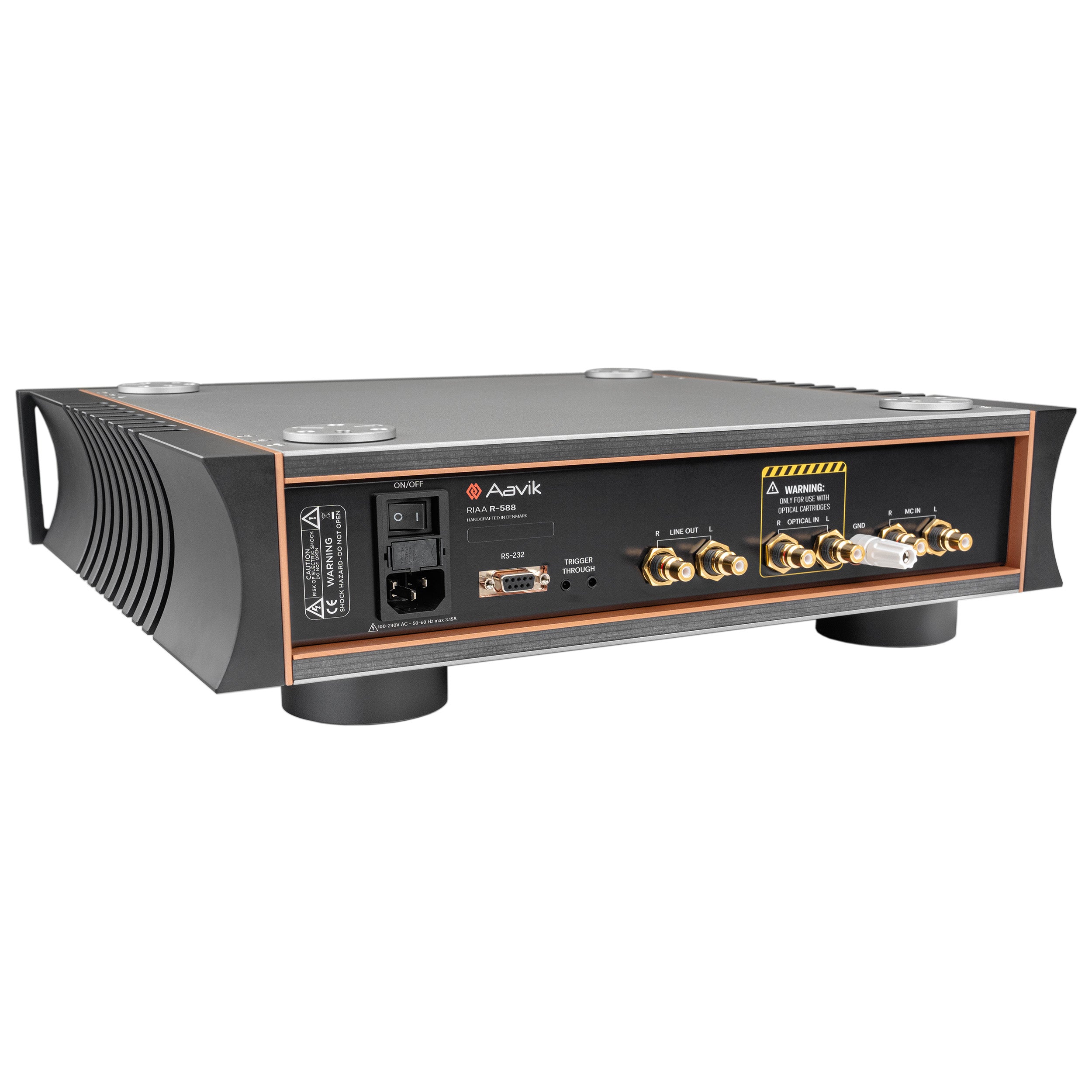

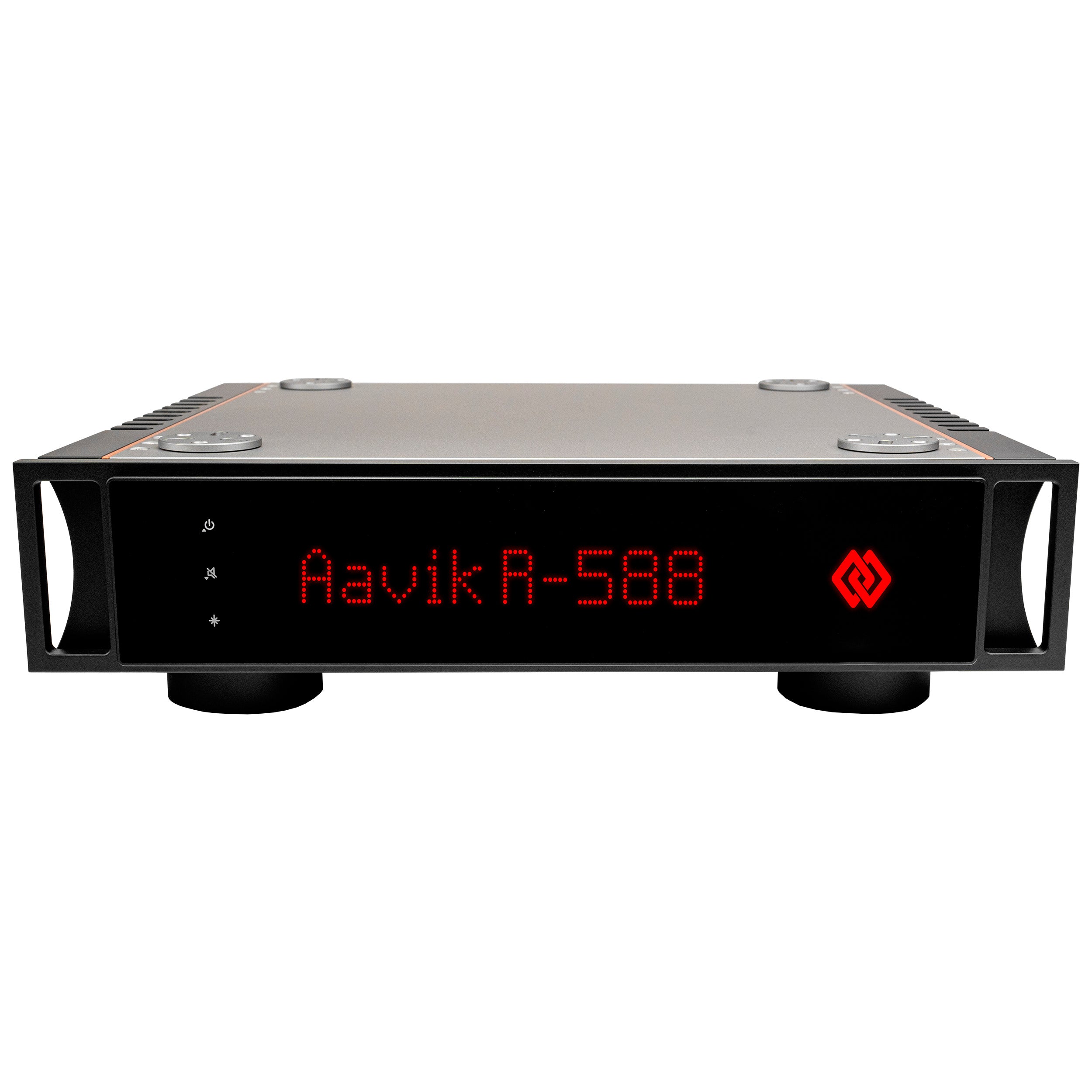

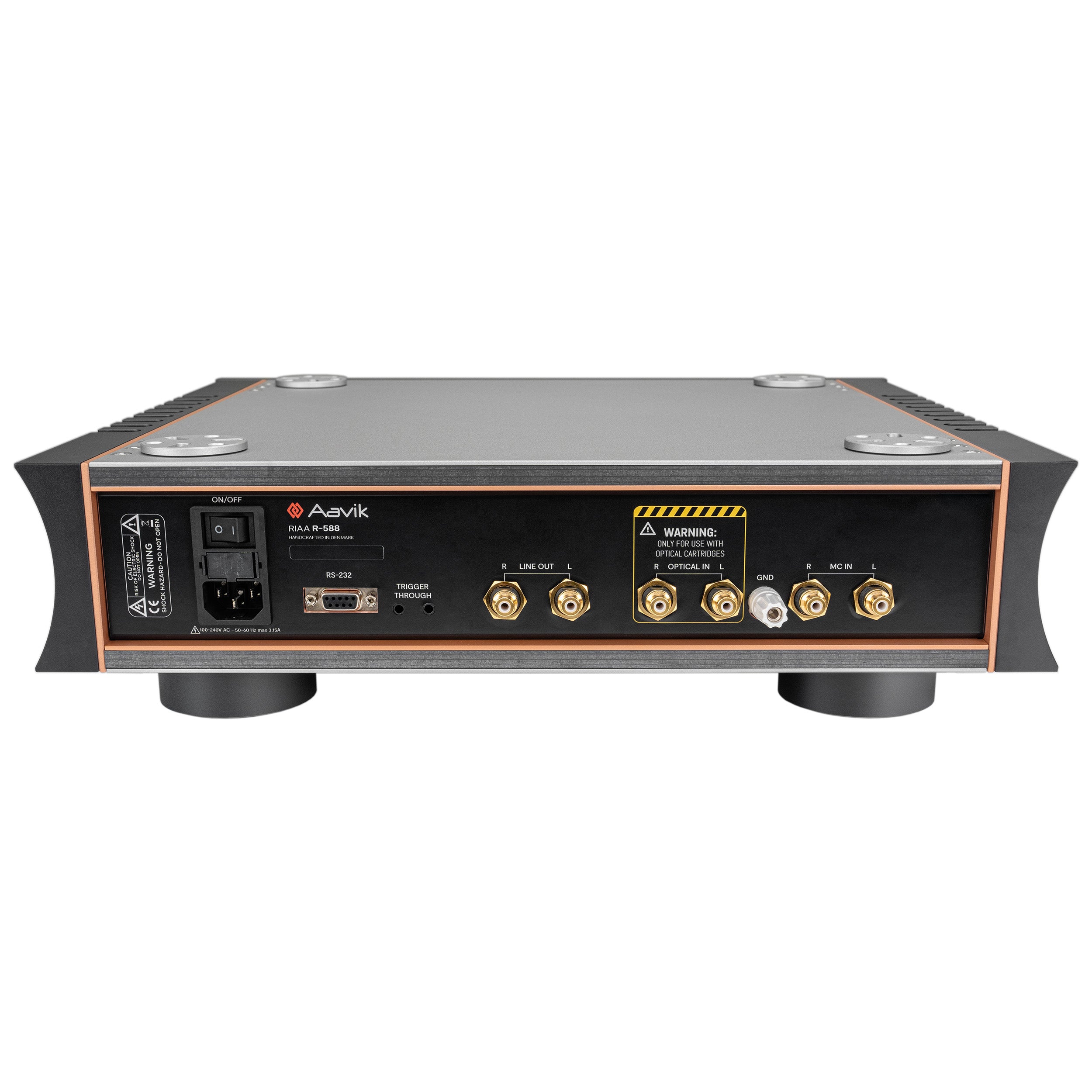

Aavik R-588 - the top model in analog signal processing

Aavik R-588 is the top model in the R-x88 phono stage series and represents the very best Aavik offers in analog signal processing without moving all the way up to R-880 level. It is developed for uncompromising vinyl enthusiasts who want maximum musicality, extreme calm, and an almost unbelievable degree of resolution. R-588 is not merely a further development of R-188 and R-288, but the culmination of the series’ technical philosophy, where noise reduction, power management, and signal integrity have been refined to absolute reference class.

Like the rest of the series, R-588 is inspired by Aavik R-880 and can handle both Moving Coil cartridges and DS Audio’s optical cartridges in one complete solution. This makes it an unusually flexible yet extremely specialized phono stage, designed for the most ambitious analog systems.

Highlights

• Reference phono stage for both MC and DS Audio optical cartridges
• Maximum noise reduction with the highest number of active Tesla and square Tesla coils in the series
• 3rd-generation analog dither technology for extreme spaciousness and microdynamics
• Advanced Resonant Mode power supply with ultra-low impedance
• MC engine with fully balanced, floating input and ultra-low-noise BISS transistors
• Optical engine with direct-coupled signal path and finely adjustable filters
• Developed by Flemming Erik Rasmussen and Michael Børresen

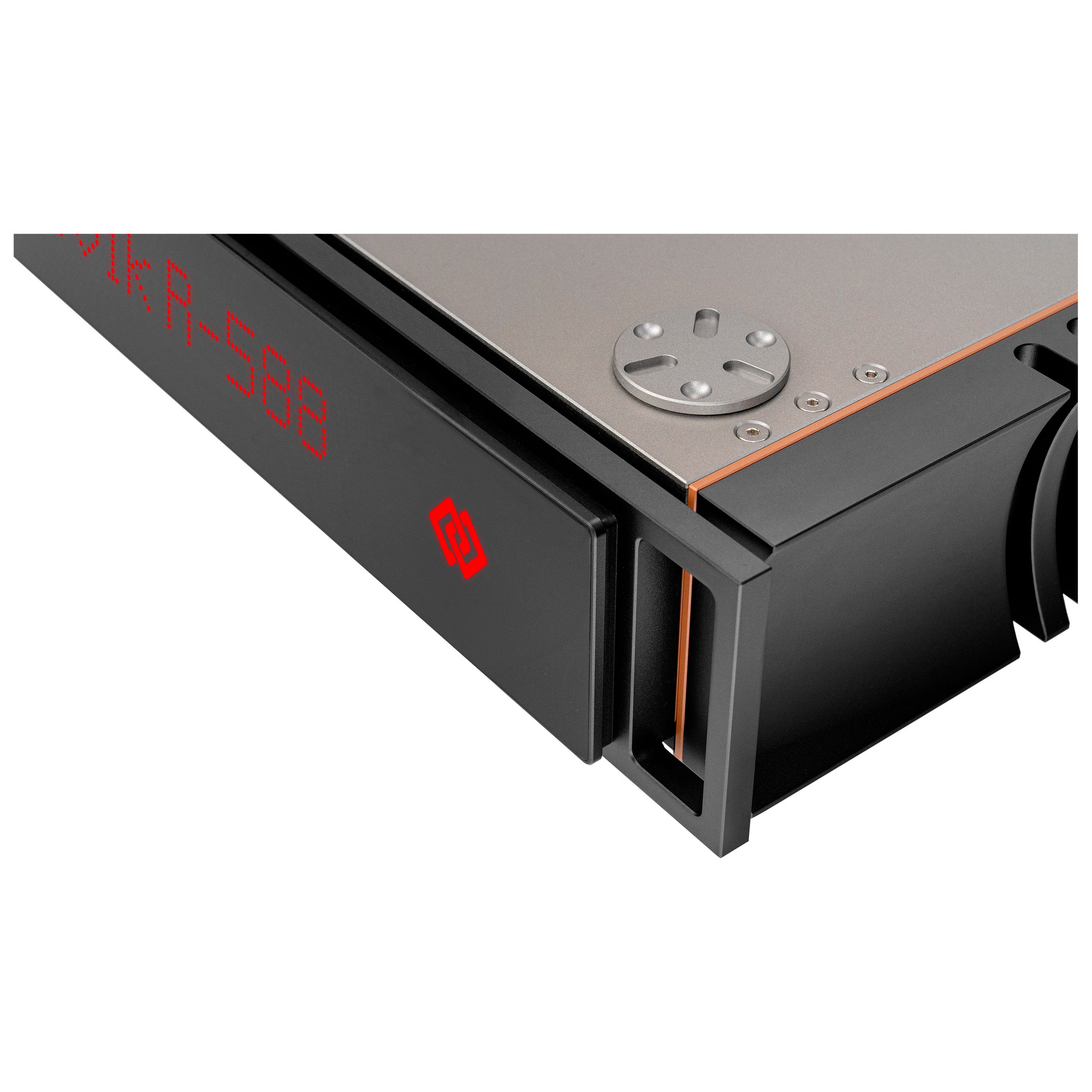

• Cabinet design optimized for maximum mechanical and electrical calm

The pinnacle of the R-x88 series

Where R-188 introduces the series and R-288 significantly elevates noise control and resolution, R-588 is designed without compromise. Here, all key technologies are implemented in their most comprehensive form, with an even more refined focus on noise suppression and energy stability. The result is a phono stage that operates against an almost completely black background, where the music emerges with a naturalness and authority normally associated with far more expensive reference products.

The interplay of form and function

R-588 was created through the collaboration between Flemming Erik Rasmussen and Michael Børresen. Rasmussen was responsible for the visual and physical expression, where the cabinet’s shapes and materials were chosen with a focus on both aesthetics and resonance control. Børresen, for his part, developed the internal architecture, where each component is placed and dimensioned with the aim of eliminating interference, vibration, and electrical noise.

This fusion of design and engineering makes R-588 a phono stage that not only looks calm, but also sounds calm.

Resonant Mode power supply – unlimited control

R-588 uses Aavik’s most advanced resonant mode power supply in the series. It operates with power-factor-corrected switching and generates an extremely clean sinusoidal voltage. When the music demands extra energy, the supply automatically adjusts its operating frequency to deliver high peak currents without compression or distortion.

This approach results in an exceptionally low noise level and an extremely low output impedance, which is crucial to the authority and dynamic freedom for which R-588 is known.

The Tesla coil system – noise reduction at reference level

R-588 uses the most comprehensive Tesla coil setup in the R-x88 series. The active Tesla coils and active square Tesla coils are strategically placed in the circuit to neutralize high-frequency noise and voltage-related artifacts before they can affect the signal. Because these coils are actively powered, they operate with significantly lower impedance and far greater efficiency than passive solutions.

The 3rd-generation analog dither technology builds on this foundation. By generating extremely precise counter-phase signals, the music’s micro-signals are amplified while the noise floor is pushed even lower. The result is a soundstage with greater depth, more air, and an almost holographic reproduction of the space around the recording.

MC engine – when silence reveals detail

R-588’s MC engine is designed to operate with an almost extreme degree of silence. The fully balanced, floating input is based on ultra-low-noise BISS transistors, making it possible to reproduce even the most subtle signals from an MC cartridge without electronic coloration.

The discrete 75 µs filtering reduces mechanical artifacts from the records without affecting musicality, while the hand-matched passive RIAA network ensures perfect channel balance and a linear, natural frequency response.

Optical engine – uncompromising handling of DS Audio

For DS Audio’s optical cartridges, R-588 offers a dedicated signal path without DC-blocking capacitors. The direct coupling preserves transient response and image stability, while ultra-low-noise regulators ensure optimal power supply to LEDs and photocells.

The adjustable high-pass and low-pass filters make it possible to fine-tune the reproduction to both cartridge and system, delivering an outstanding combination of speed, clarity, and natural tonality – exactly what optical systems are known for, but here realized at absolute reference level.

An instrument for the dedicated vinyl enthusiast

Aavik R-588 is not designed to impress with effects or artificial tonality. It is developed to disappear and let the music speak for itself. With its extreme calm, enormous resolution, and natural dynamics, it conveys vinyl’s full potential – from the smallest nuances in the voice to the grand orchestral overview.

R-588 is for the listener who accepts no compromises and wants a phono stage that can keep up with even the most ambitious cartridges and turntables in the reference class.
