JBL Summit Makalu

JBL SUMMIT MAKALU –  MAXIMUM PRECISION AND MUSICAL DEPTH

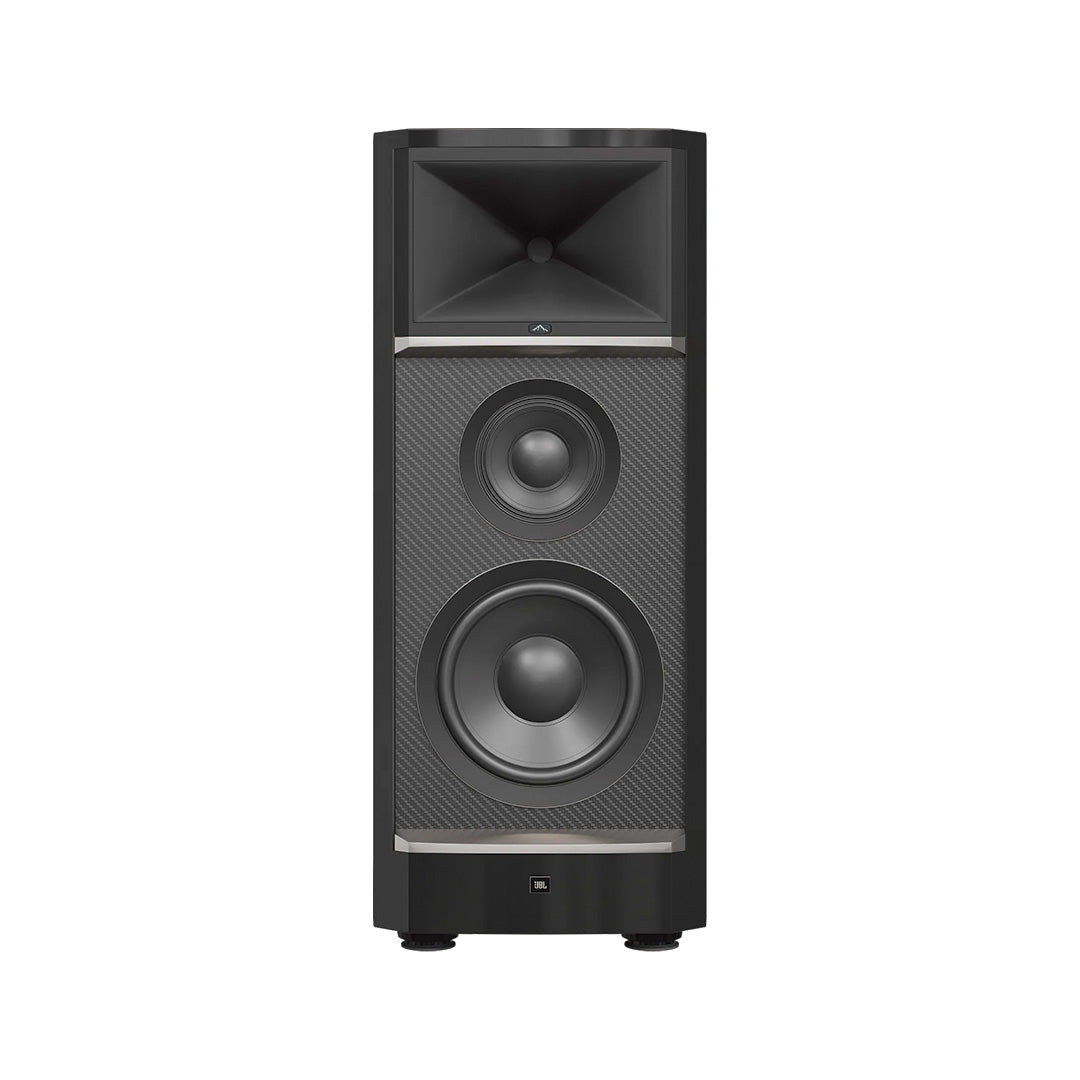

JBL Summit Makalu is the new flagship in the Summit series for the 12-inch woofer category. It combines advanced driver technology, acoustically optimized cabinet design, and premium material selection, making the sound reproduction from JBL Summit Makalu absolute reference level.

Summit Makalu is inspired by the majestic, pyramid-shaped profile of Mount Makalu -  one of the world's highest peaks, representing a perfect balance of strength, precision, and aesthetics.

highlights

• Patented JBL D2830K 3" dual-diaphragm, dual-motor compression driver
• Sonoglass® High-Definition Imaging (HDI™) horn for precise dispersion and clarity
• 8" midbass and 12" woofer with triple-layer Hybrid Carbon Cellulose Composite (HC4) cones

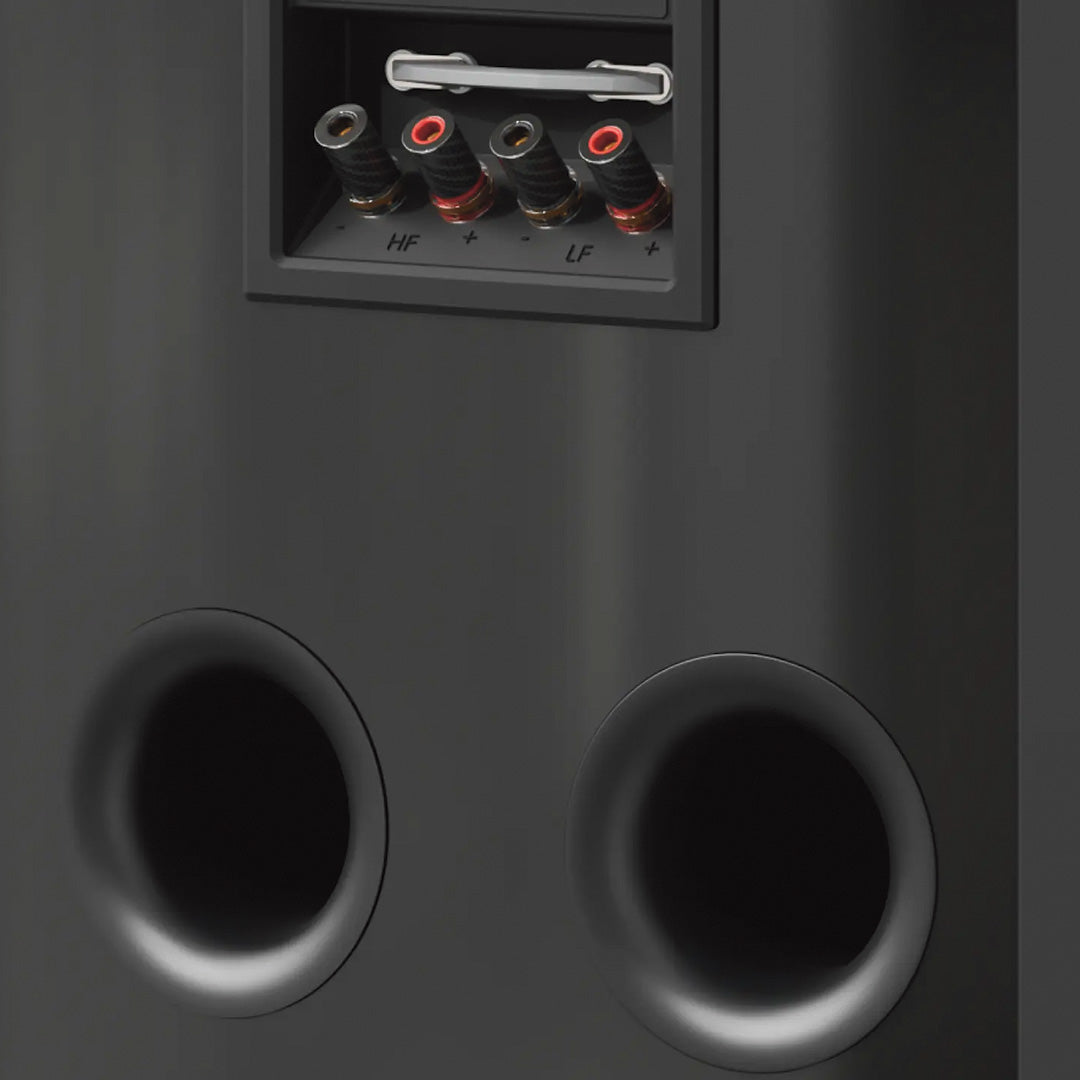

• MultiCap™ crossover with single-wire and bi-amp/bi-wire options
• Internal cabinet construction with offset multi-bracing and damped curved walls
• JBL | IsoAcoustics® isolation feet for optimal vibration decoupling
• High-gloss cabinet finish in black/platinum or ebony/gold

HDI HORN TECHNOLOGY

Summit Makalu uses JBL's patented D2830K 3-inch dual-diaphragm, dual-motor compression driver, coupled to a precision-molded Sonoglass® HDI™ horn. This combination ensures high efficiency, low distortion, and precise dispersion of high-frequency energy, resulting in an open and detailed soundstage with precise placement of instruments and voices.

HC4 MIDBASS AND WOOFER WITH HIGH STRENGTH AND LOW DISTORTION

The sonic foundation is provided by an 8-inch midbass driver and a 12-inch woofer, both built on robust cast frames. They use JBL’s exclusive triple-layer Hybrid Carbon Cellulose Composite (HC4) cones, in which carbon fiber and pure pulp are combined with a closed-cell foam core. This construction provides optimal stiffness, low mass, and high damping, enabling powerful bass reproduction with extreme precision and low distortion even at high sound pressure levels.

MULTICAP™ CROSSOVER FOR OPTIMAL SIGNAL DISTRIBUTION

Summit Makalu is equipped with JBL’s MultiCap™ crossover network, which replaces large capacitors with several smaller ones to reduce ESR (Equivalent Series Resistance). The result is higher signal throughput, improved power handling, lower distortion, and greater dynamic range. With both single-wire and bi-amp/bi-wire connection options, the system can be optimized for different amplifier configurations.

ACOUSTICALLY OPTIMIZED CABINET WITH RESONANCE CONTROL

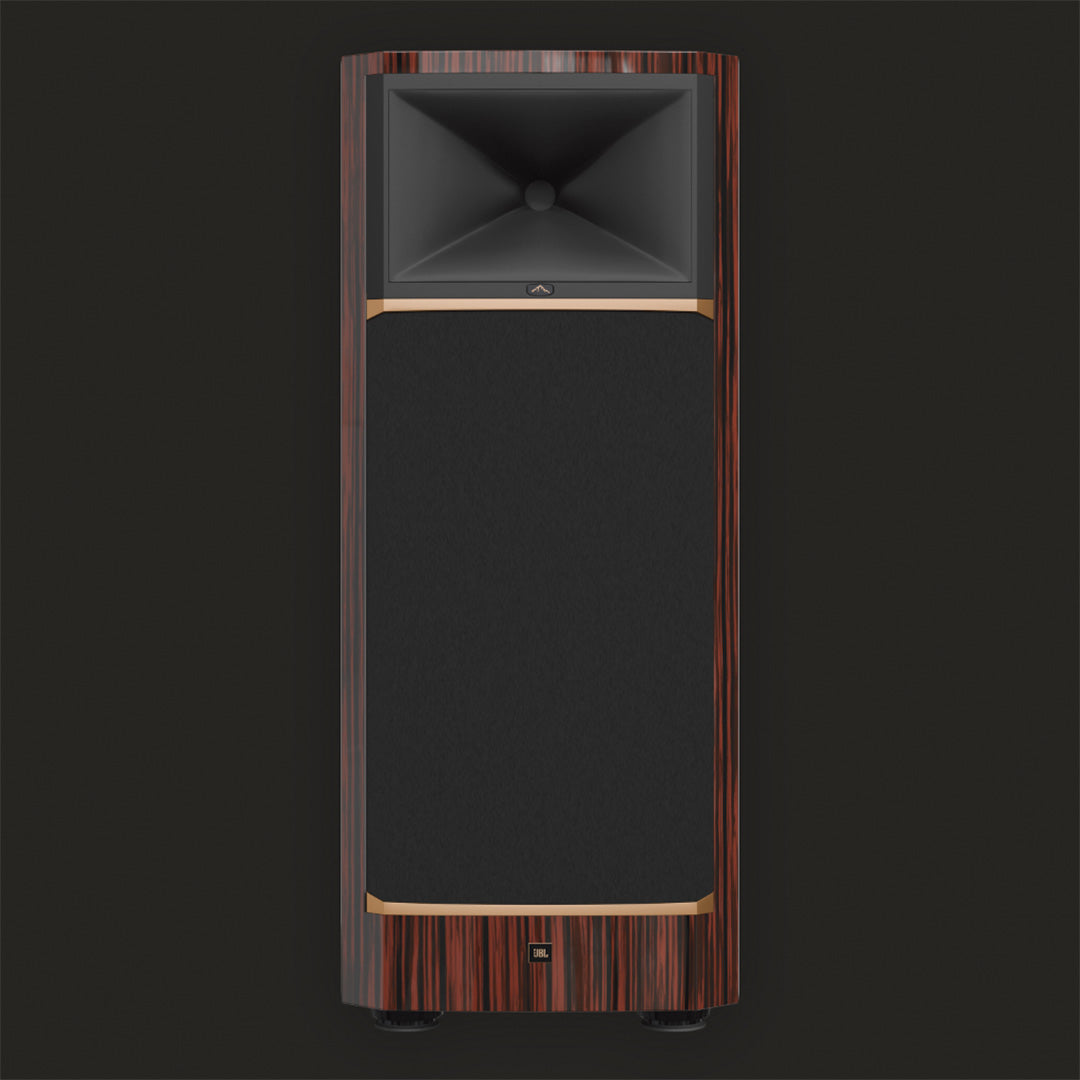

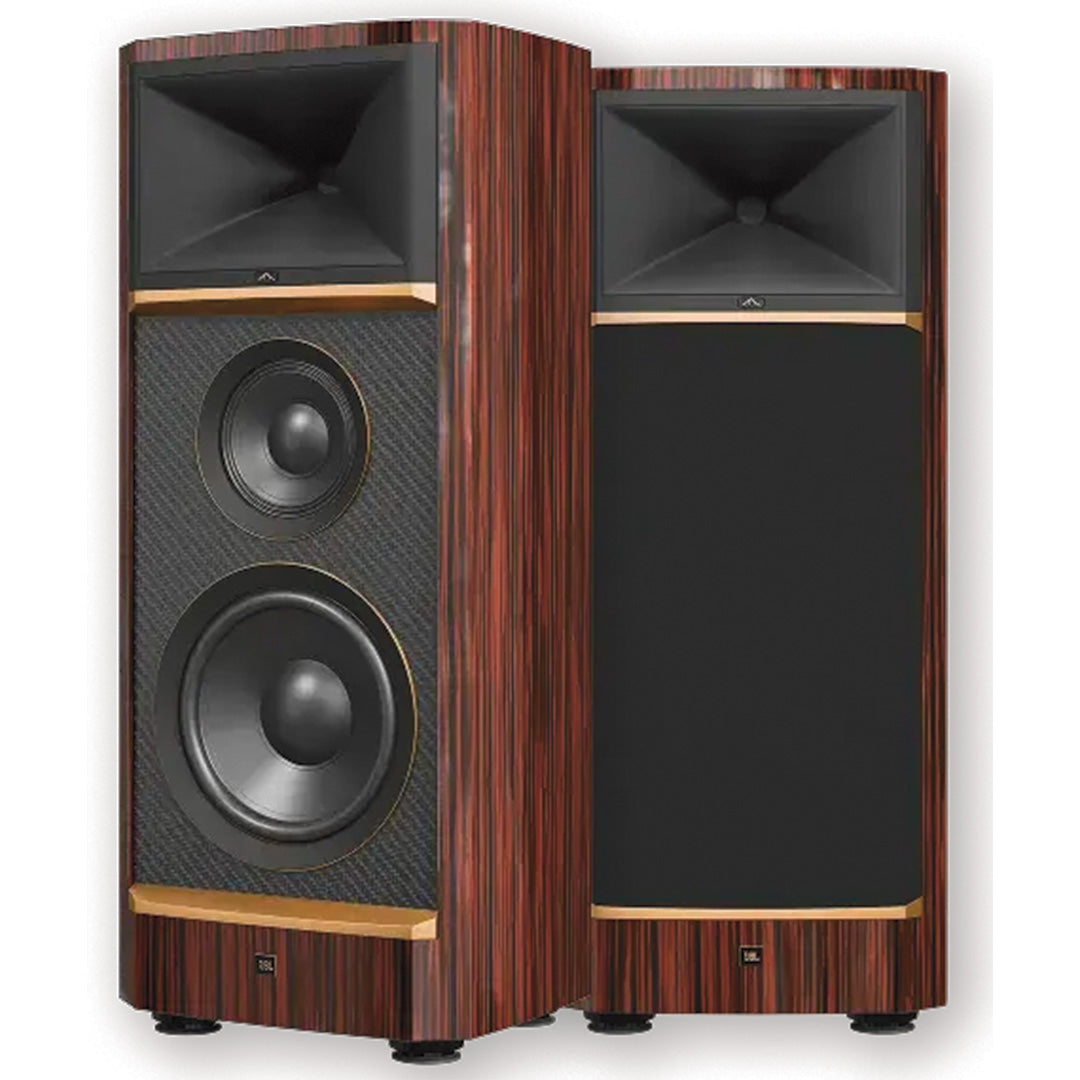

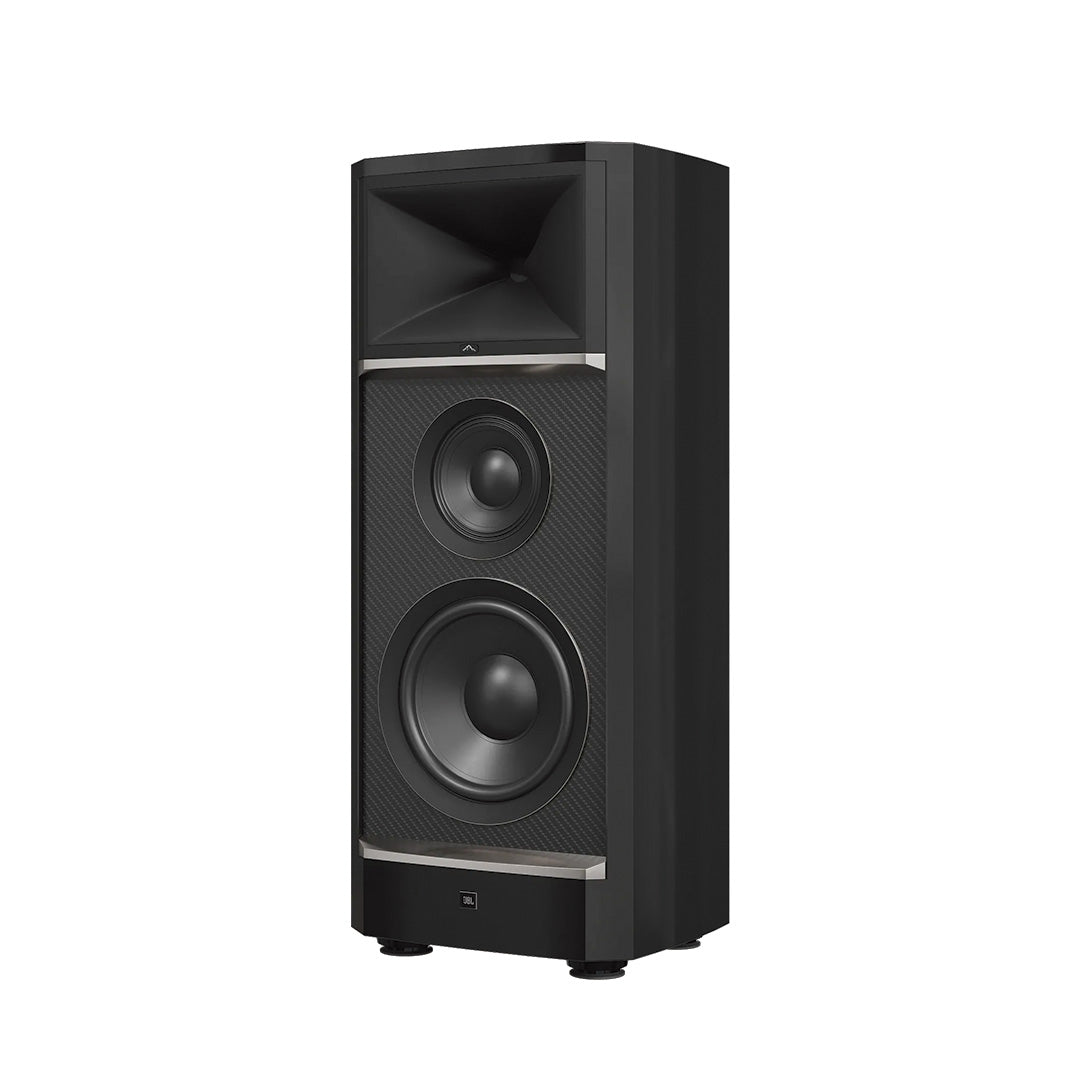

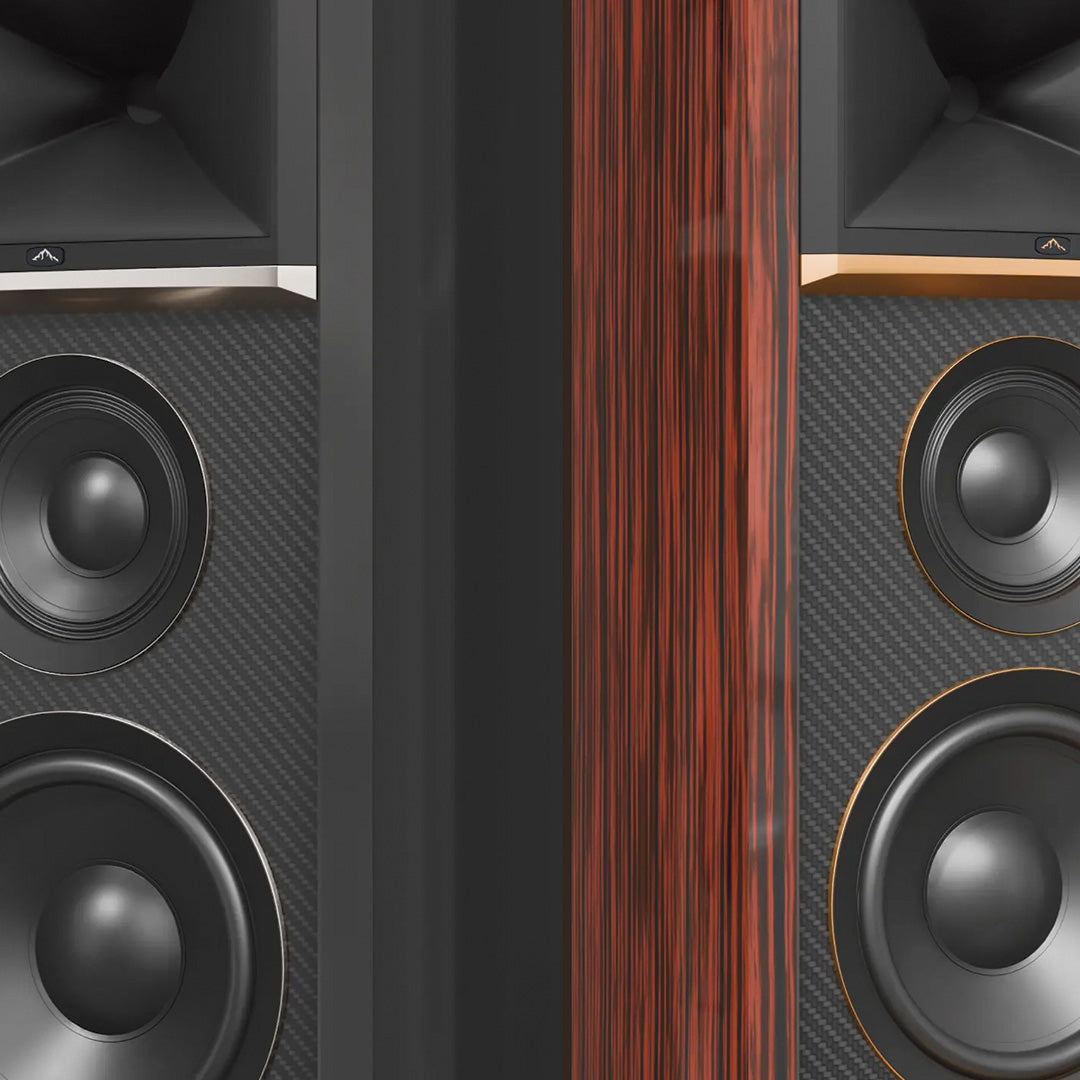

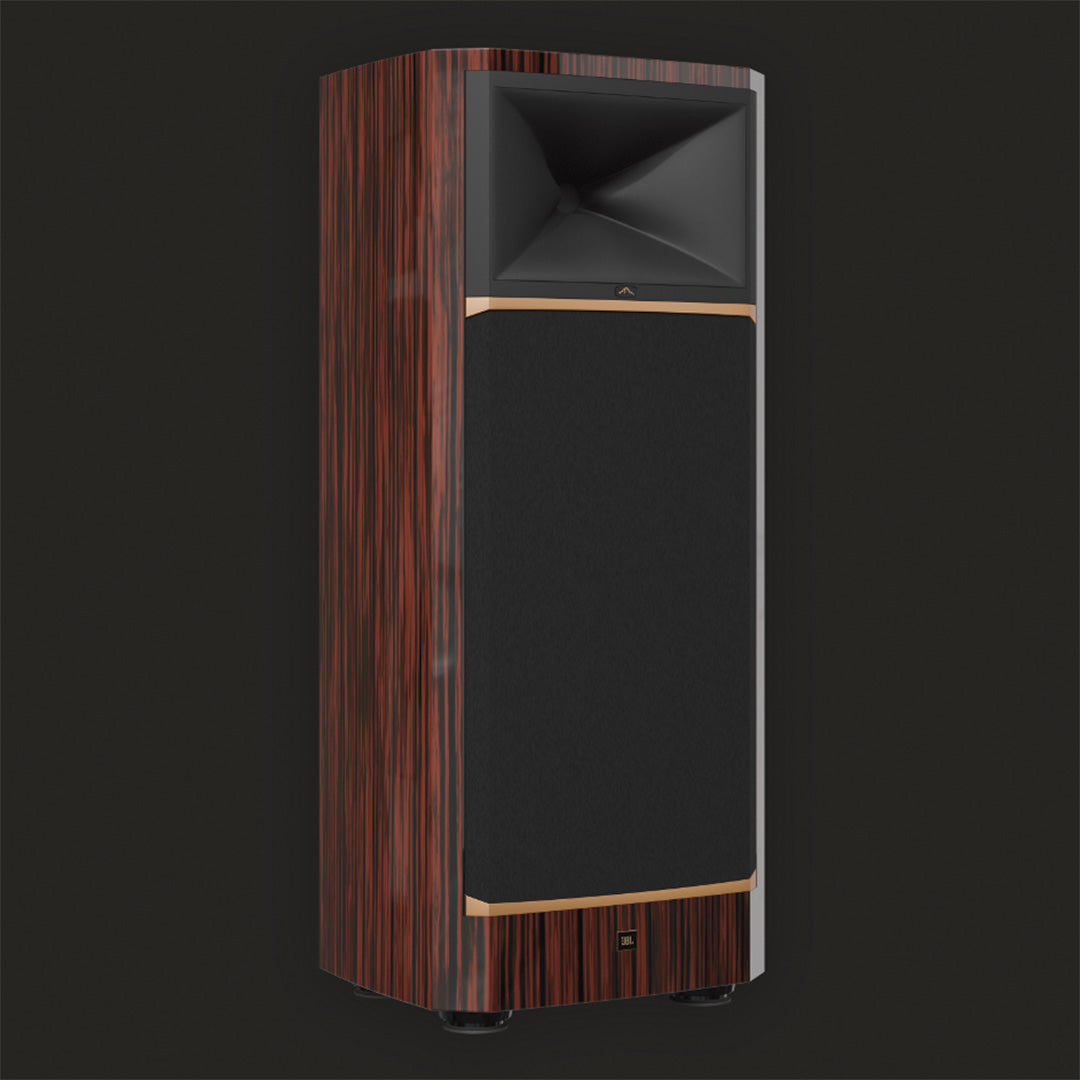

The cabinet construction is designed with internal offset multi-bracing and curved walls to minimize standing waves and internal resonances. Heavy damping ensures a neutral acoustic environment in which the drivers can perform at their maximum. The cabinet is available in high-gloss black with Summit platinum details or high-gloss ebony veneer with Summit gold details, both with carbon fiber inlays around the baffle.

ISOLATION FOR MAXIMUM CLARITY AND BASS CONTROL

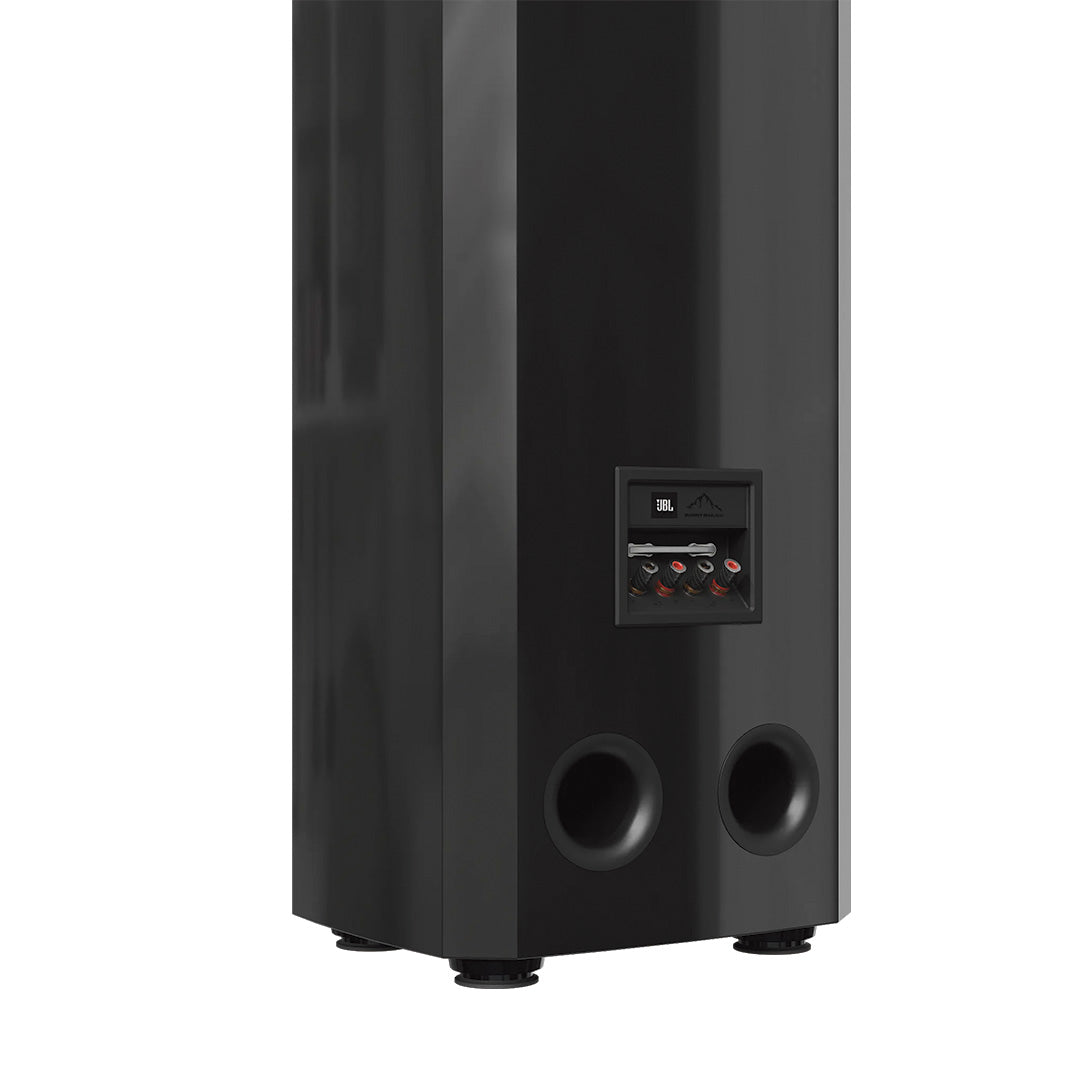

The base of each speaker is equipped with specially designed JBL | IsoAcoustics® feet that effectively decouple the cabinet from the surface beneath it. This vibration isolation reduces unwanted energy transfer, resulting in tighter bass, improved stereo imaging, and greater depth in the soundstage.

TECHNICAL SPECIFICATIONS

Type: 3-way floorstanding reference speaker
Tweeter: JBL D2830K 3" dual-diaphragm, dual-motor compression driver
Horn: Sonoglass® High-Definition Imaging (HDI™) horn
Midrange: 8" cast frame, triple-layer HC4 cone
Bass: 12" cast frame, triple-layer HC4 cone

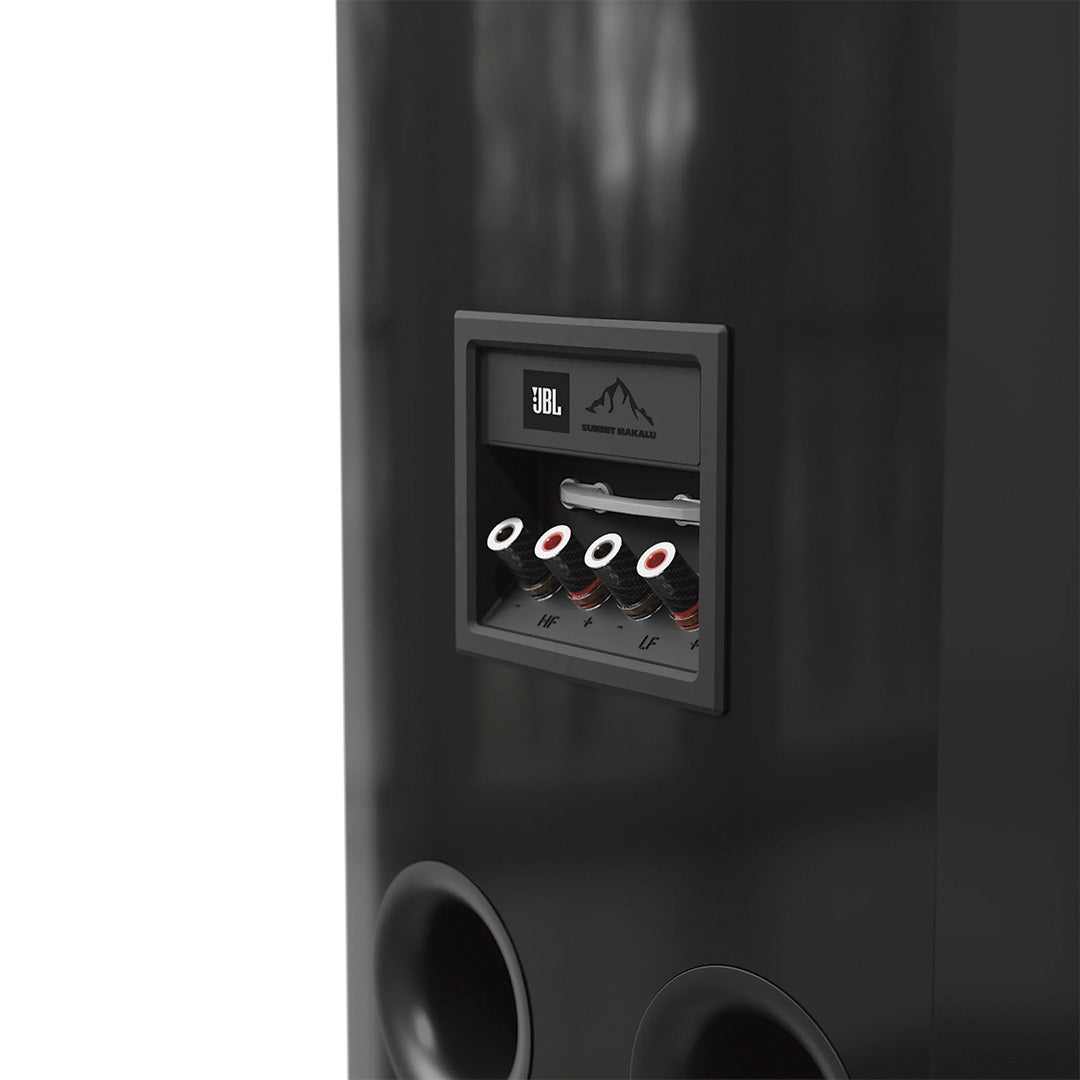

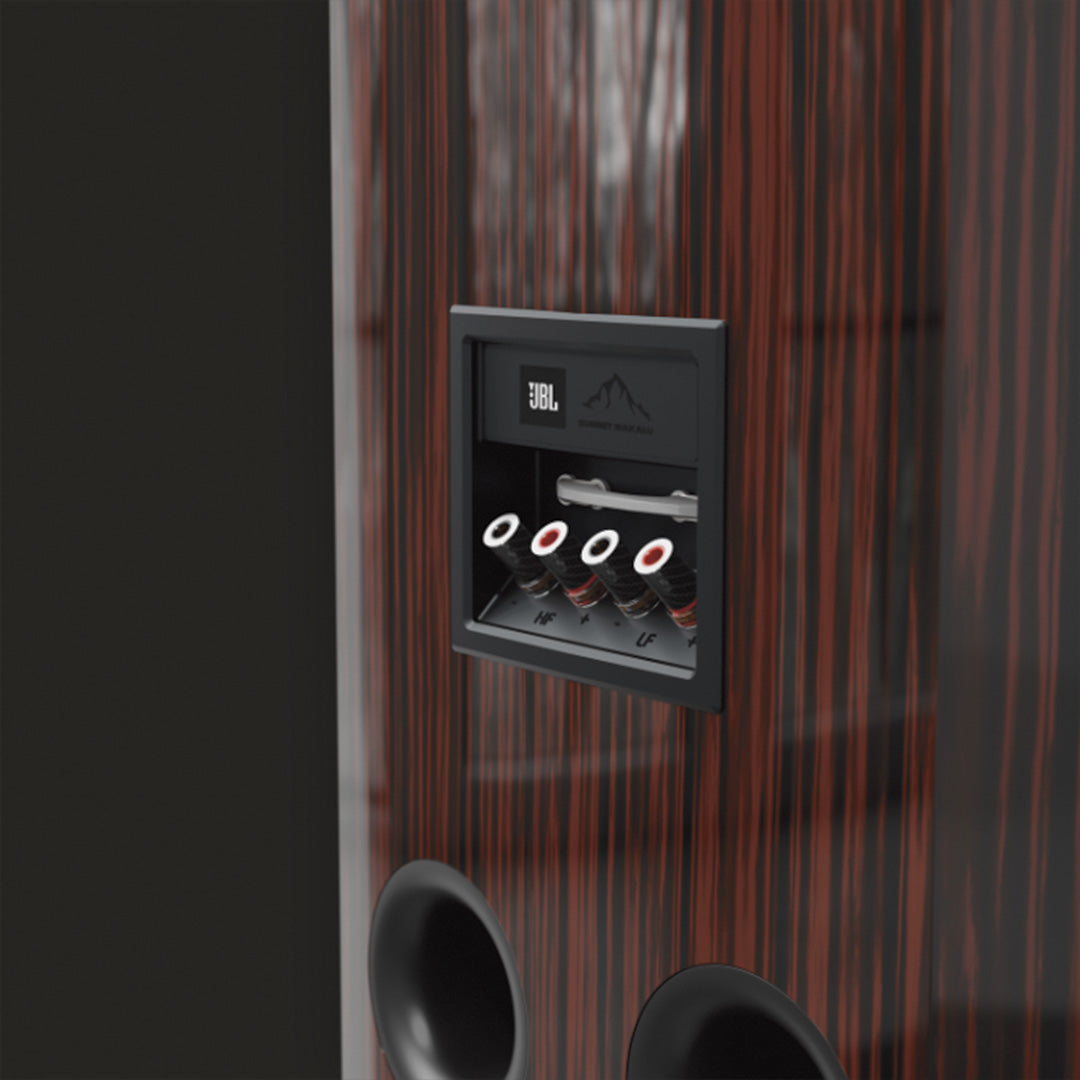

Crossover: JBL MultiCap™ network, single-wire and bi-amp/bi-wire compatible
Cabinet: Curved walls, multi-braced and damped construction, carbon fiber baffle trim
Feet: JBL | IsoAcoustics® adjustable acoustic isolation feet
Finish: High-gloss black/platinum or high-gloss ebony/gold
