Borresen X1

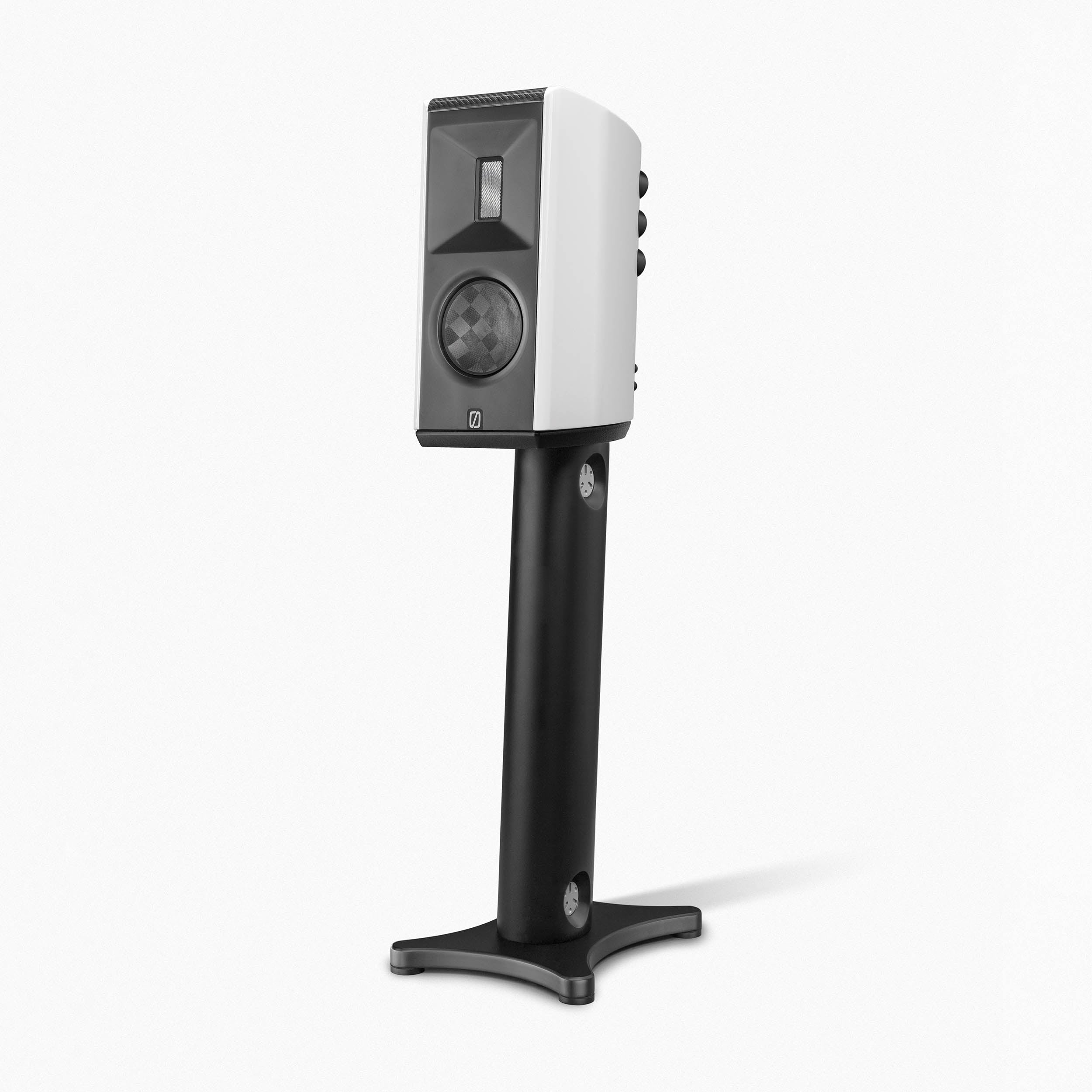

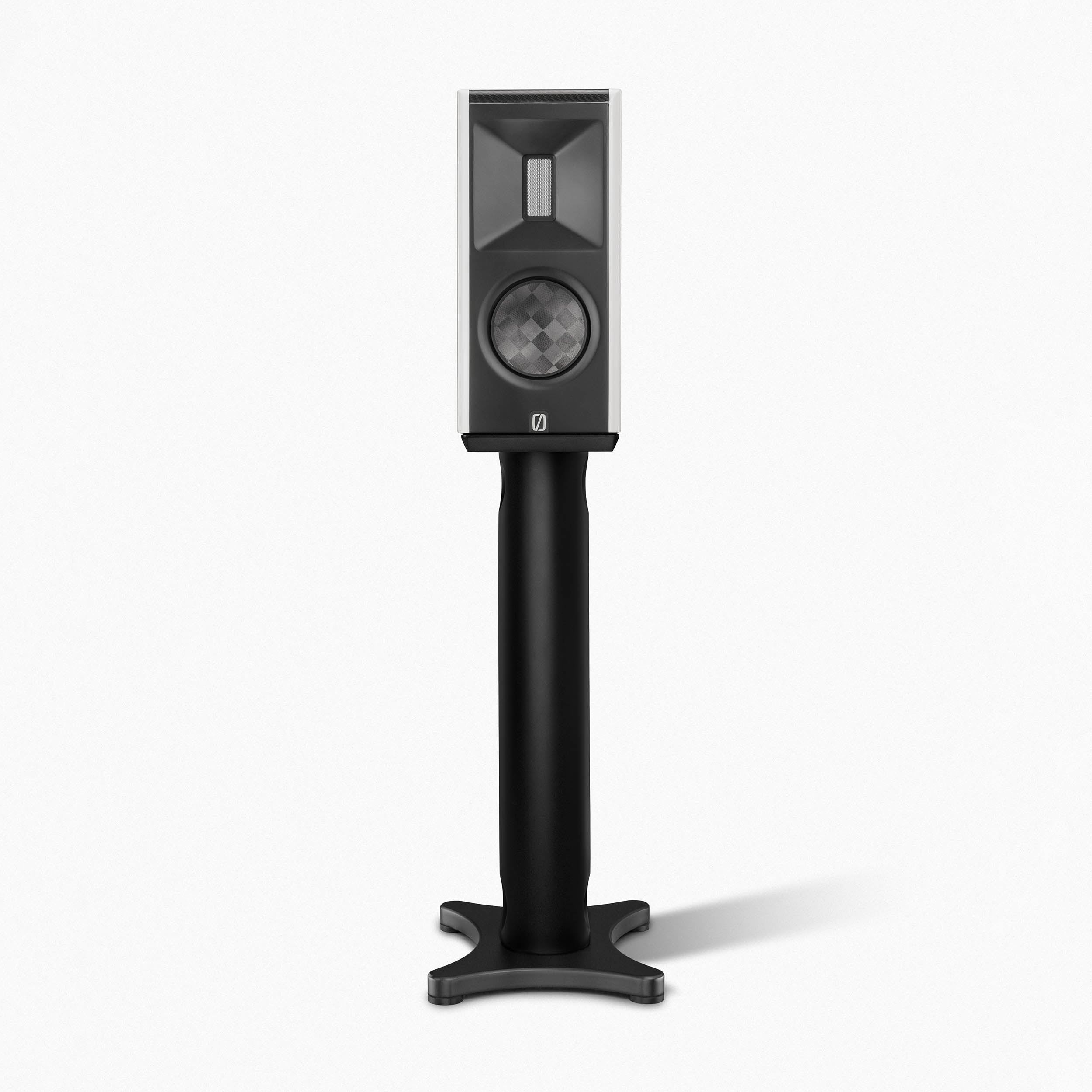

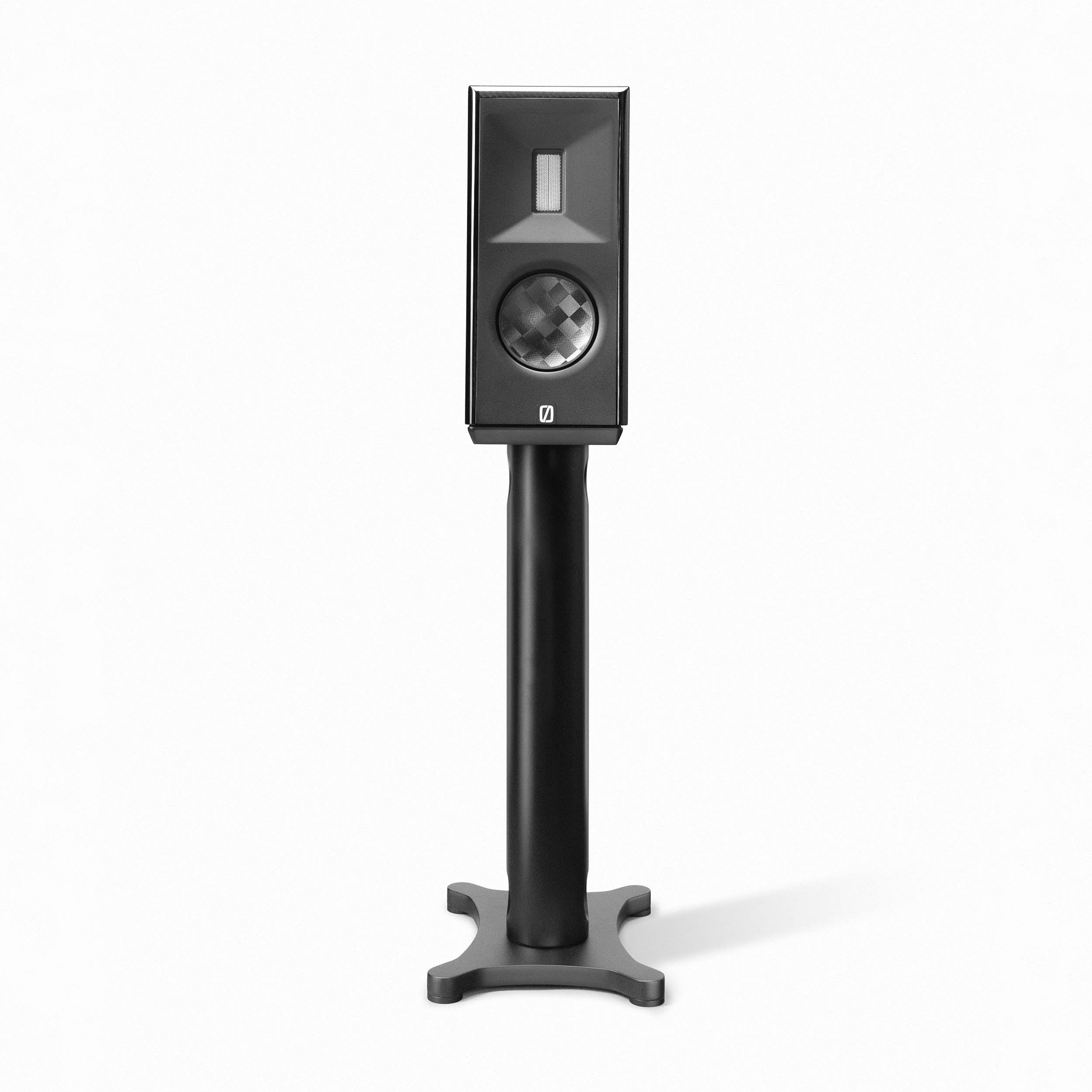

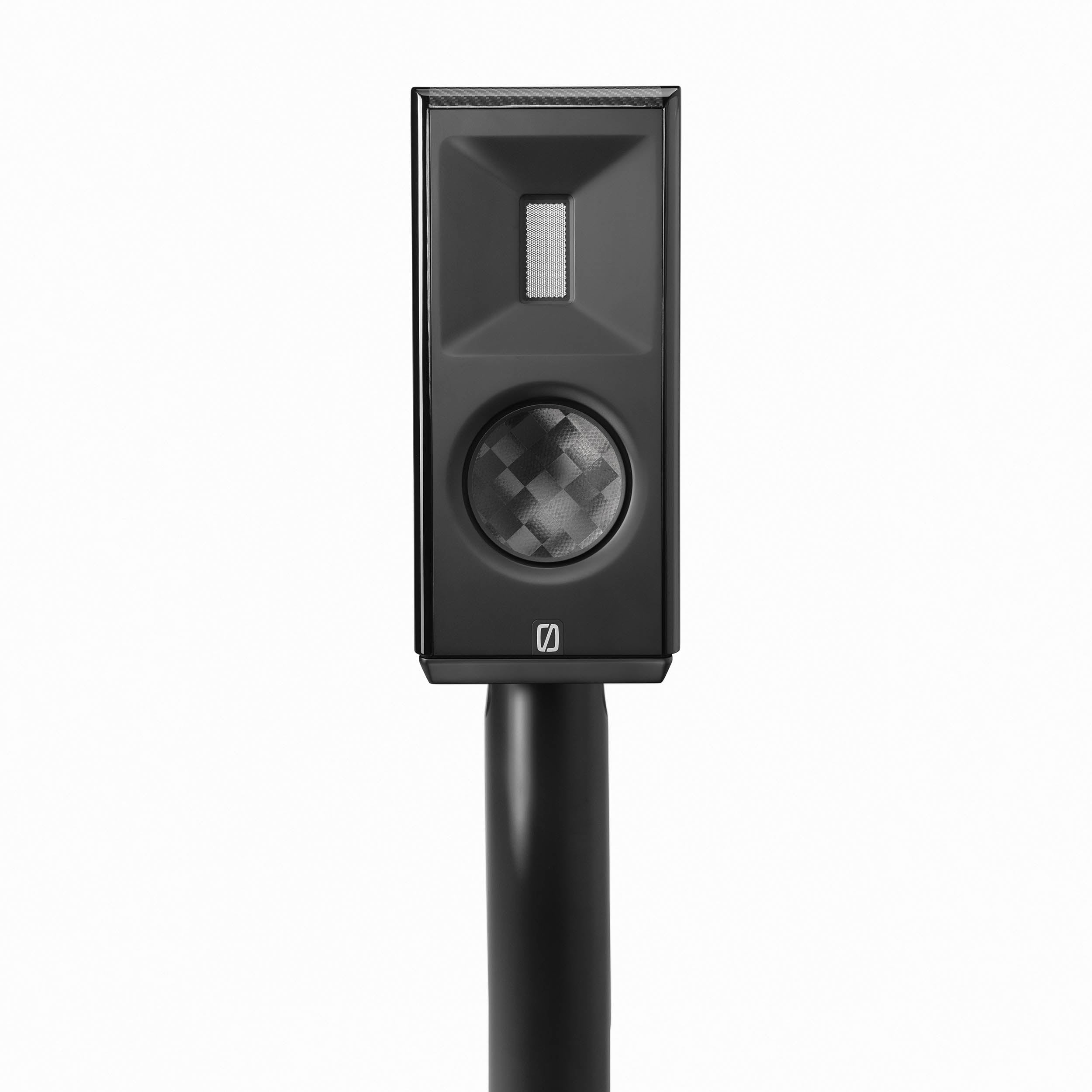

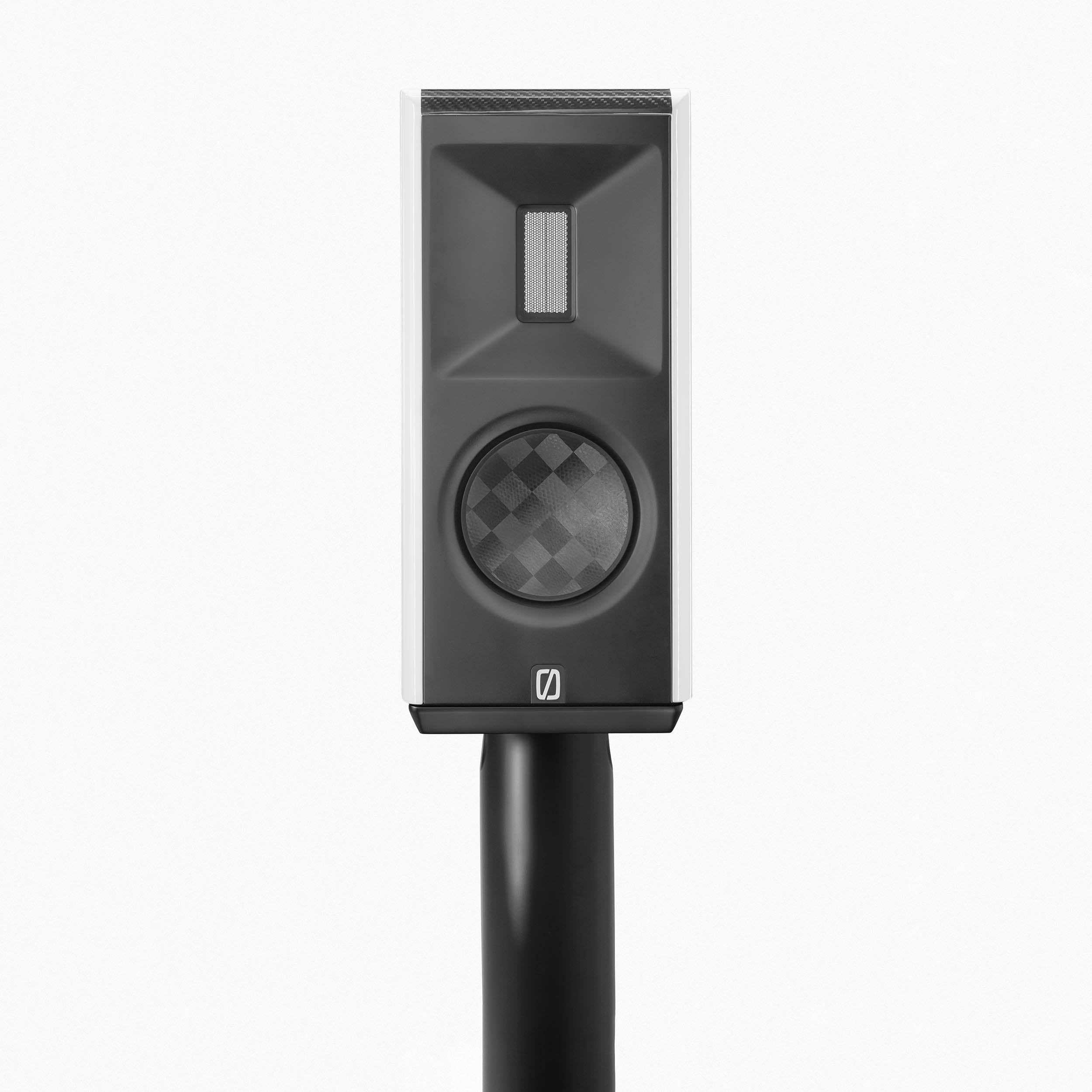

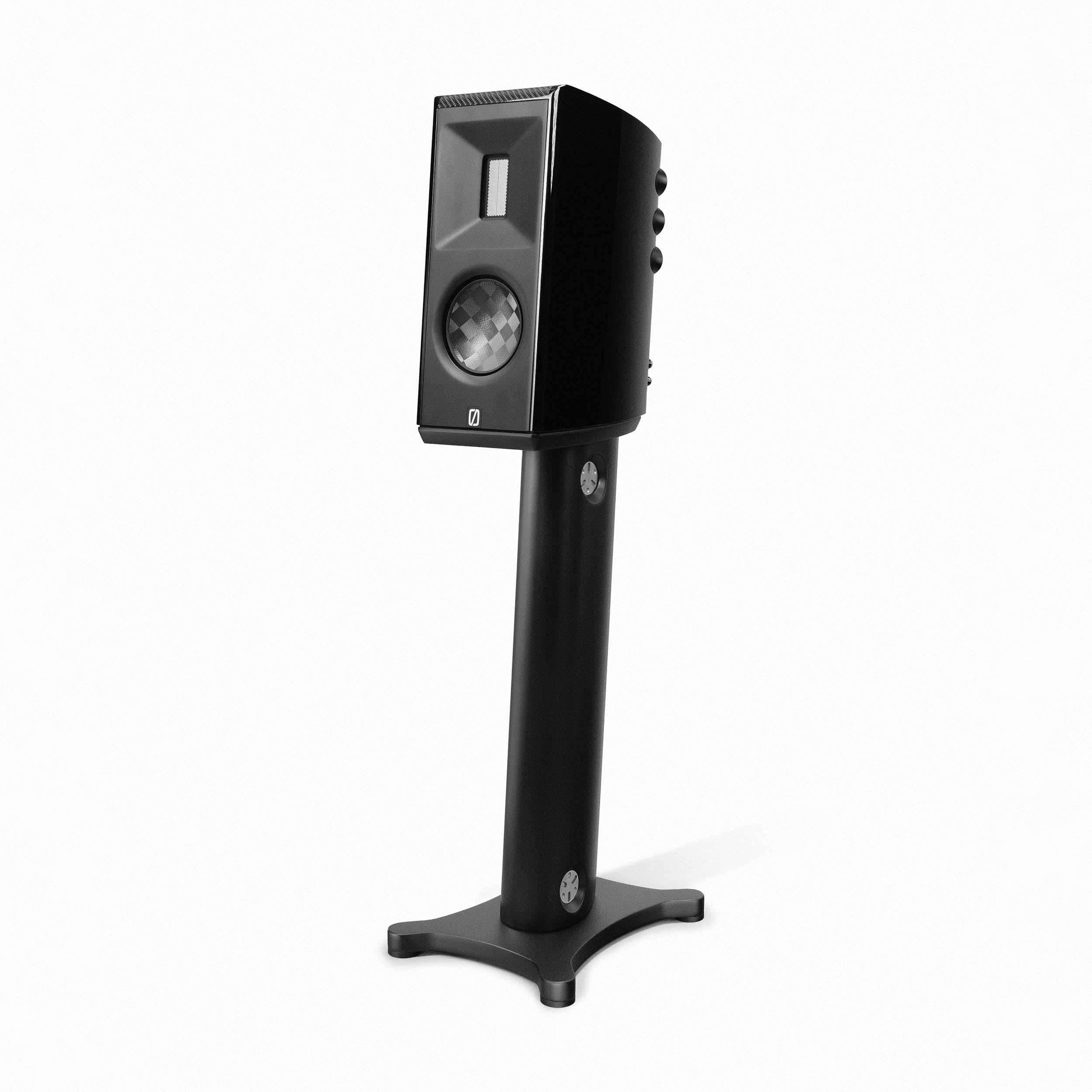

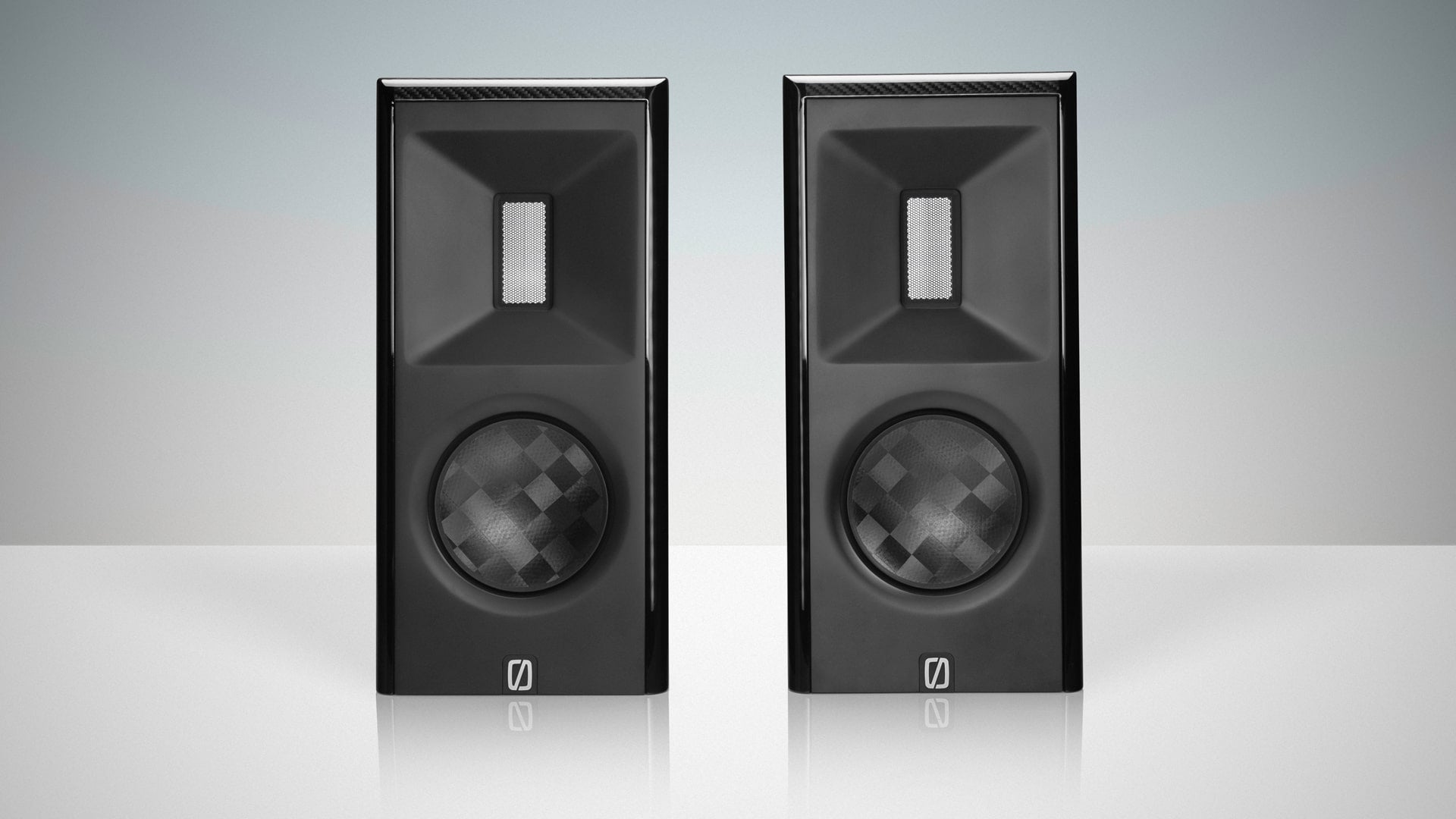

Børresen X1 - High-end compact loudspeaker with a large sound image

The Børresen X1 is a compact and particularly well-playing speaker, where you get an incredible amount of value for money. With X1, you get access to Børresen's know-how, which they have learned through the development of their exclusive M, 0 and Z series. This has resulted in a bass-midrange with the innovative Spread-tow carbon membrane, one of the world's lightest ribbon tweeters and the use of copper sheaths in the magnetic motor system. In combination with the drop-shaped cabinet, which effectively eliminates the internal standing sound waves, you get a sound quality that is a benchmark for its class. The sound is harmonious and with a heaviness that is far greater than what their physical size immediately gives the impression of. The vocals are delivered with the utmost openness and detail, which makes it an incredible musical communicator.

Technologies and components

The Børresen X1 is certainly an entry-level model in the Børresen family, but you shouldn't be fooled by that. Børresen's entry-level is still high-end hifi, and the X1 represents a remarkable step forward in terms of quality and performance in its price range. These loudspeakers benefit from all the knowledge gained through the development of the M, 0 and Z series. Components from these exclusive series are incorporated into the Børresen X1 loudspeakers, including the innovative Spread-tow carbon membrane, the highly praised Børresen ribbon tweeter and the use of copper sheaths in the magnet motor system.

X1 series Diaphragm - bass/midrange

The ground-breaking membrane of the X1 series is designed with the aim of achieving maximum stiffness and minimum noise. To achieve this unmatched performance, all components were designed, developed and assembled in-house. The X1 membrane consists of three layers, laminated into a single unit: two layers of dispersed carbon fiber, with a layer of aramid honeycomb spacers in between. This unique composition of materials gives the membrane its unique properties. Dispersed carbon fiber is designed to provide optimal stiffness, reducing disruptive sound vibrations and resonances to unprecedented levels. Aramid honeycomb has the best stiffness-to-weight ratio in the vertical direction. The flat response of the diaphragm, in terms of resonances, enables the creation of an extremely transparent speaker with a smaller magnet motor system to optimize costs.

Unique magnet motor system

In the X1 series magnetic motor system, double copper jackets are used on the pole ring to achieve high flux and low inductance. This technology has been borrowed from the Børresen Z series. Copper helps reduce electromagnetic resonance by counteracting flux changes, resulting in a flatter inductance curve and fewer peaks in the impedance curve. This reduced inductance puts less stress on the amplifier. To ensure high efficiency, the X1 is equipped with two pole rings, and any loss of flux is compensated by a larger magnet.

Ultra light treble without distortion

The tweeter in the X1 uses the same basic design as in all other Børresen speaker series. However, a reduction in magnet and iron mass has been achieved thanks to the extremely efficient design. This results in only a small reduction in efficiency, going from a remarkable 94 dB to 90 dB, which is still an impressive efficiency for a tweeter. The treble works from approx. 2.5 kHz and up. With an extremely low moving mass of just 0.01 grams, the tweeter can react incredibly quickly. The high robustness enables handling of very sharp transients without causing muffled tones.

First-class partial filters from the Z series

The Børresen X1 is equipped with a parallel cross filter, which uses the same premium components as the Z series. This results in a very mechanically stable crossover filter that minimizes self-resonance.

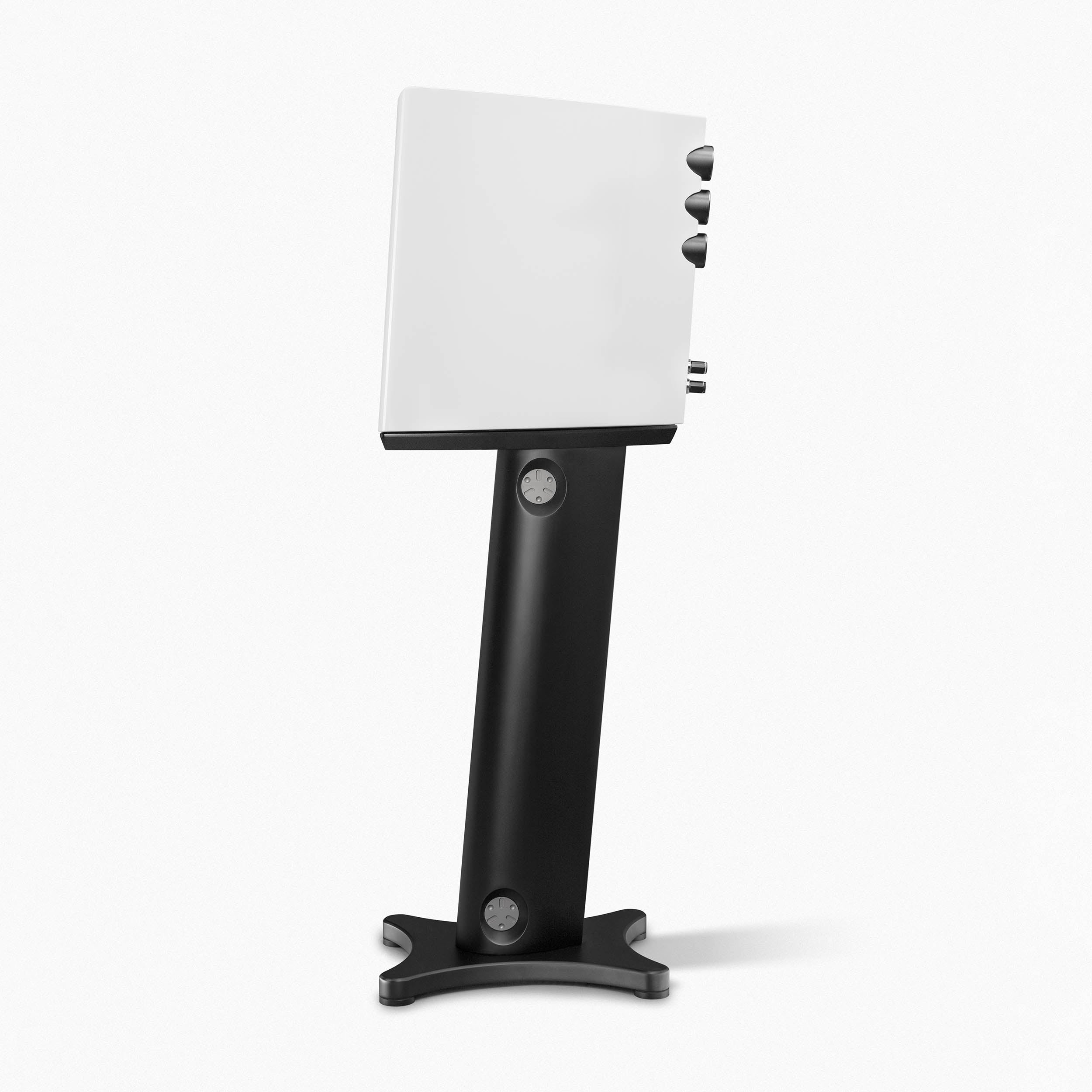

X1 Series Cabinet

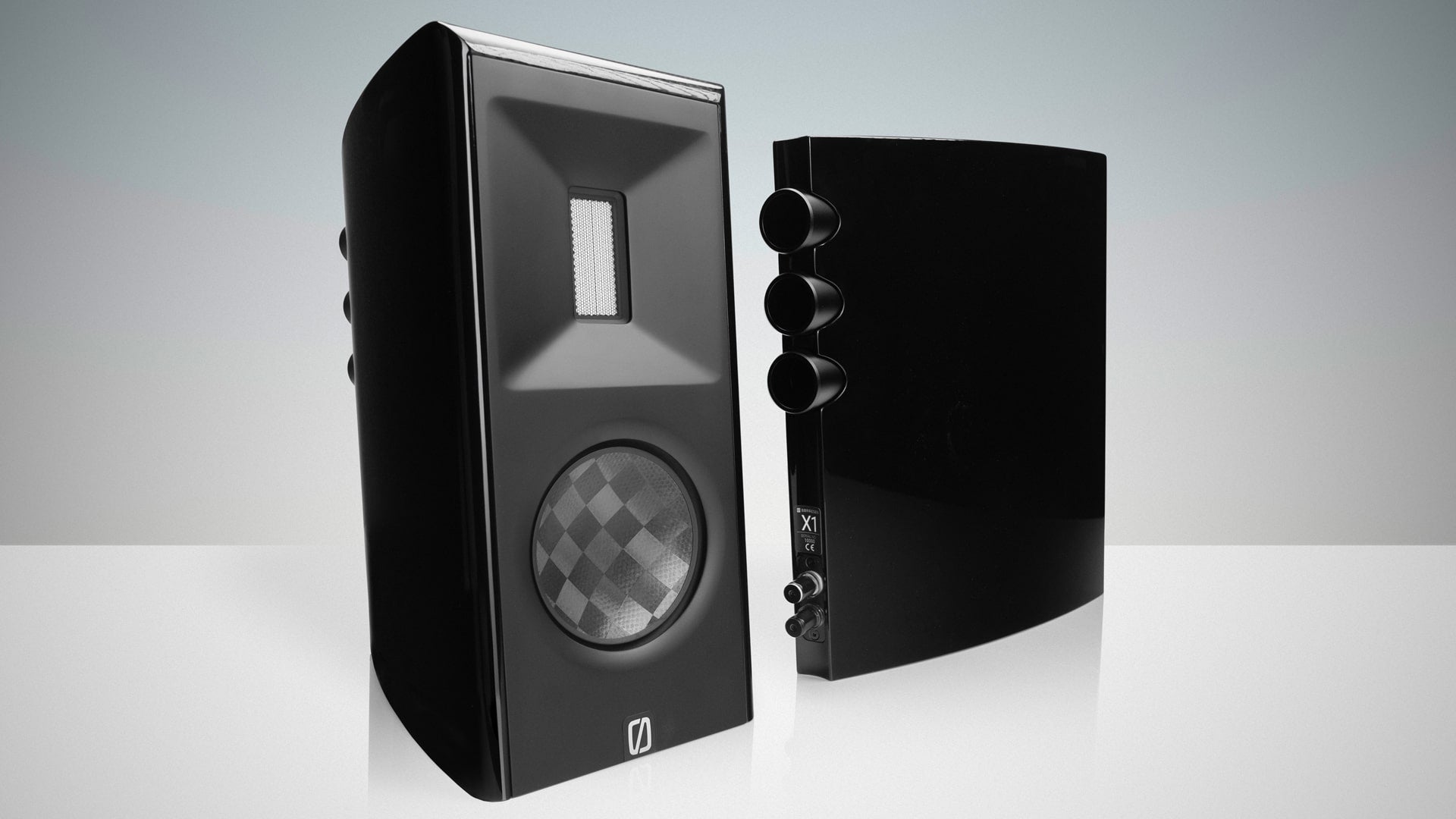

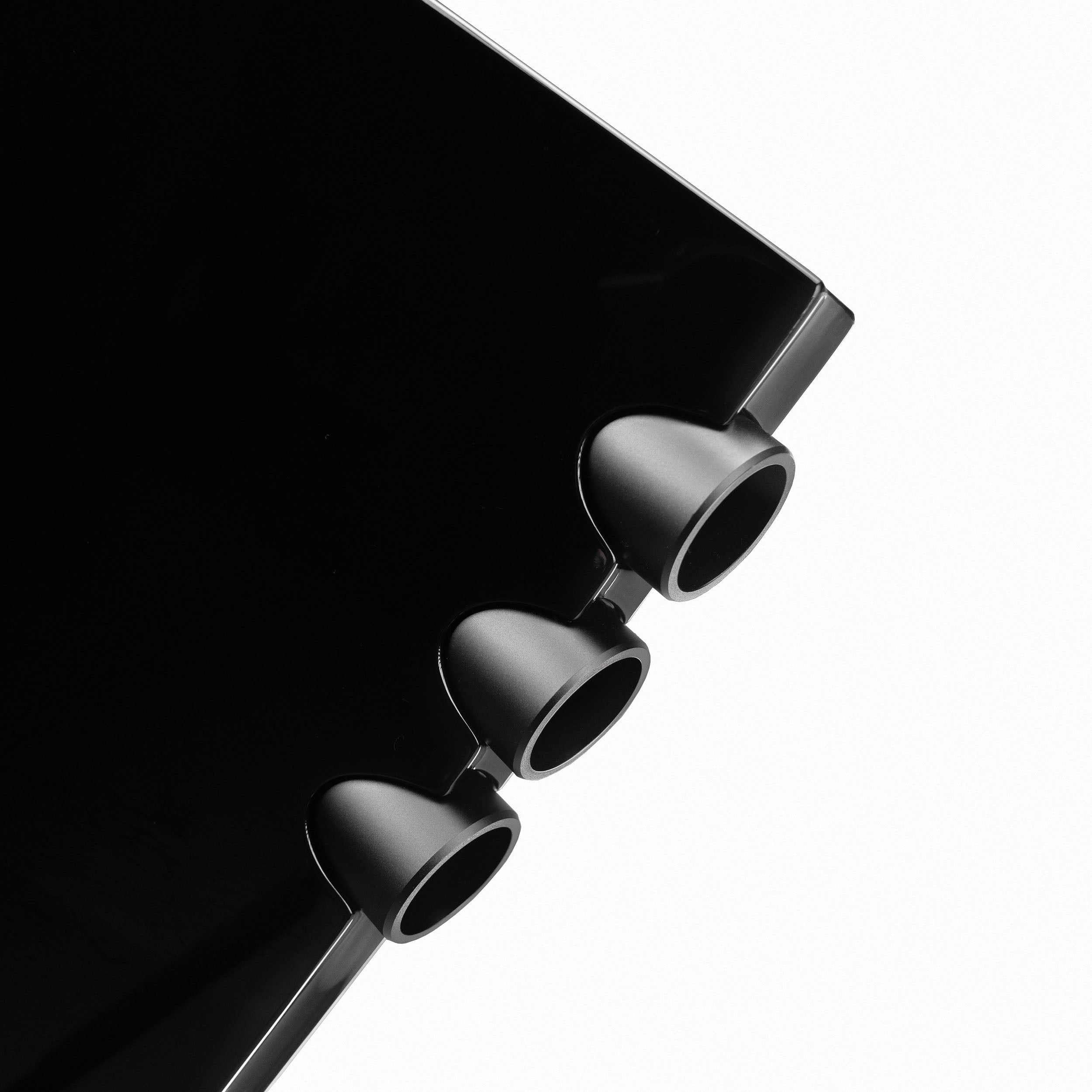

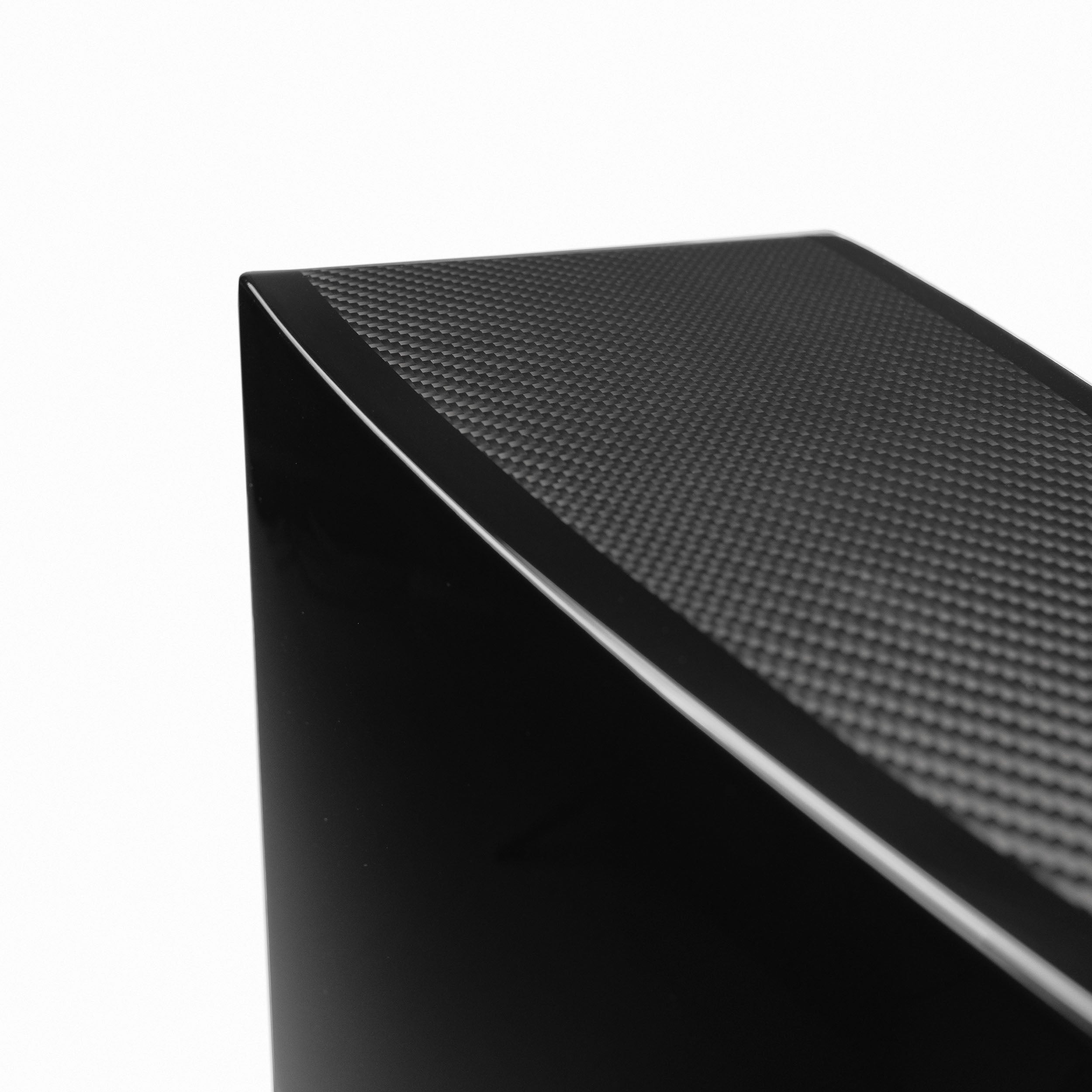

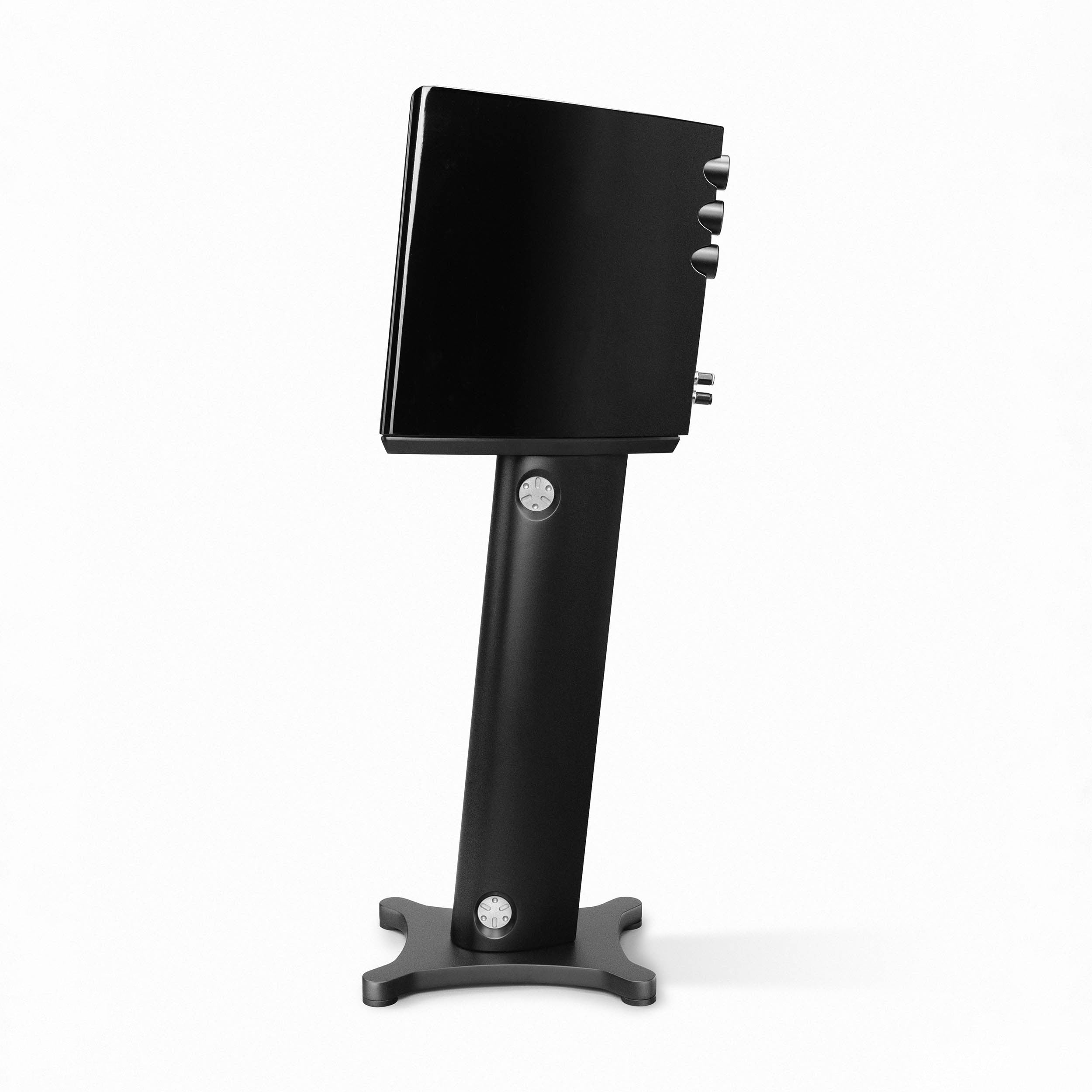

The surface of the cabinet is elegantly finished in black piano lacquer and reinforced with carbon fiber inserts. The cabinet is made of a strong reinforced wood composite that eliminates sound distortion and reduces mechanical influences, including hysteresis. This construction provides superior sound reproduction. The X1 series is equipped with bass reflex ports and the tweeter is vented to compensate for air pressure build-up. The bass section contains tuned ports calibrated to musically relevant frequencies.

The Børresen X1 combines these technological innovations and components to deliver a remarkable sound experience. The unique membrane, advanced magnetic motor and high-performance tweeter ensure that the music is reproduced with incredible clarity and precision. This series of speakers offers exceptional quality and performance in its price range and is the ideal choice for audio enthusiasts looking for an affordable way into the Børresen universe. Børresen X1 are not just speakers - they are your access to a unique music experience.
