JBL Summit Makalu

JBL SUMMIT MAKALU – MAXIMUM PRECISION AND MUSICAL DEPTH

The JBL Summit Makalu is the new flagship in the Summit series for the 12-inch woofer category. It combines advanced driver technology, acoustically optimized cabinet design and premium material selection, which makes the sound reproduction from The JBL Summit Makalu is at absolute reference level.

Summit Makalu is inspired by the majestic, pyramid-shaped profile of Mount Makalu - which is among the world's highest peaks and thus represents a perfect balance between strength, precision and aesthetics.

highlights

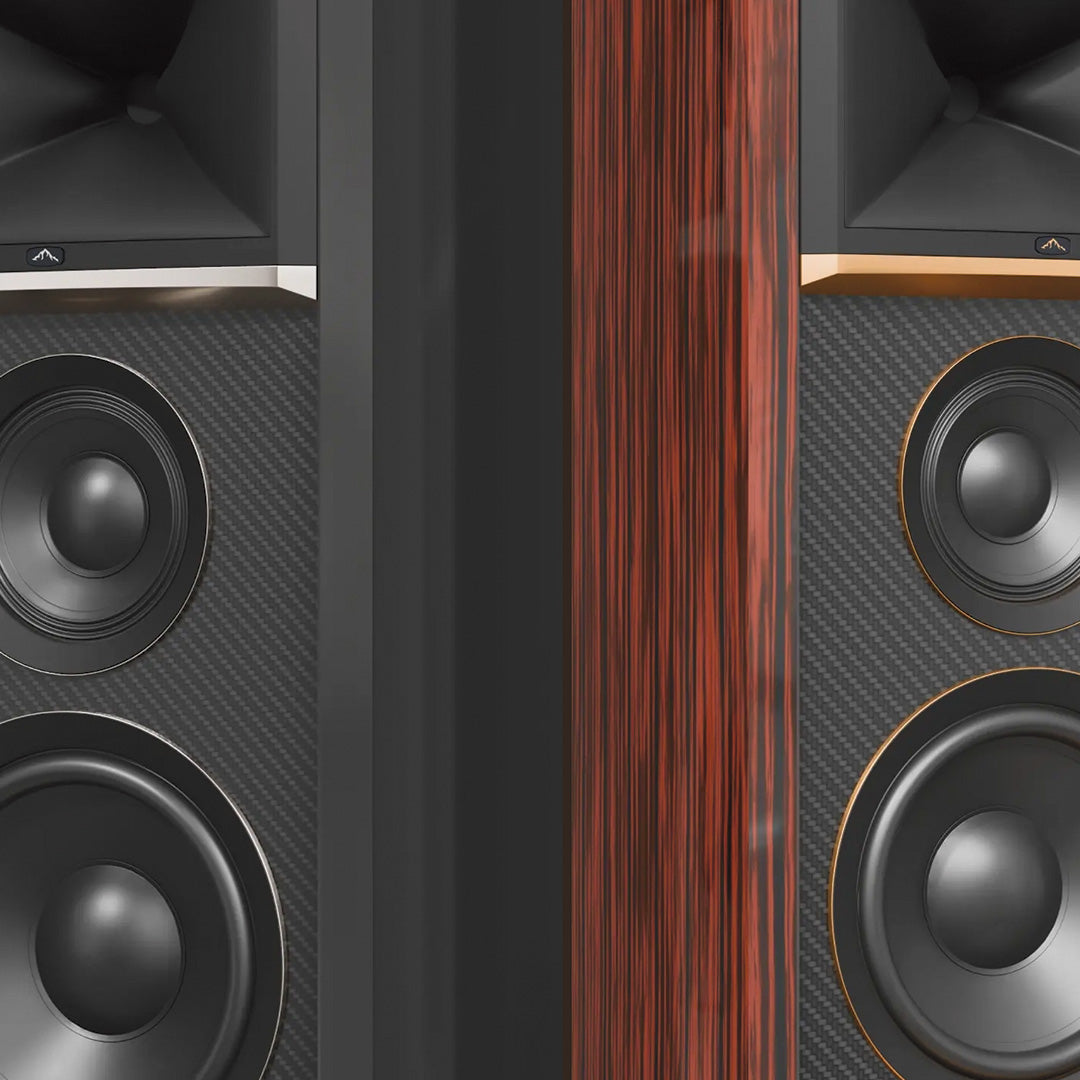

• Patented JBL D2830K 3" dual-diaphragm, dual-motor compression driver
• Sonoglass® High-Definition Imaging (HDI™) horn for precise dispersion and clarity
• 8" midbass and 12" woofer with triple-layer Hybrid Carbon Cellulose Composite (HC4) cones

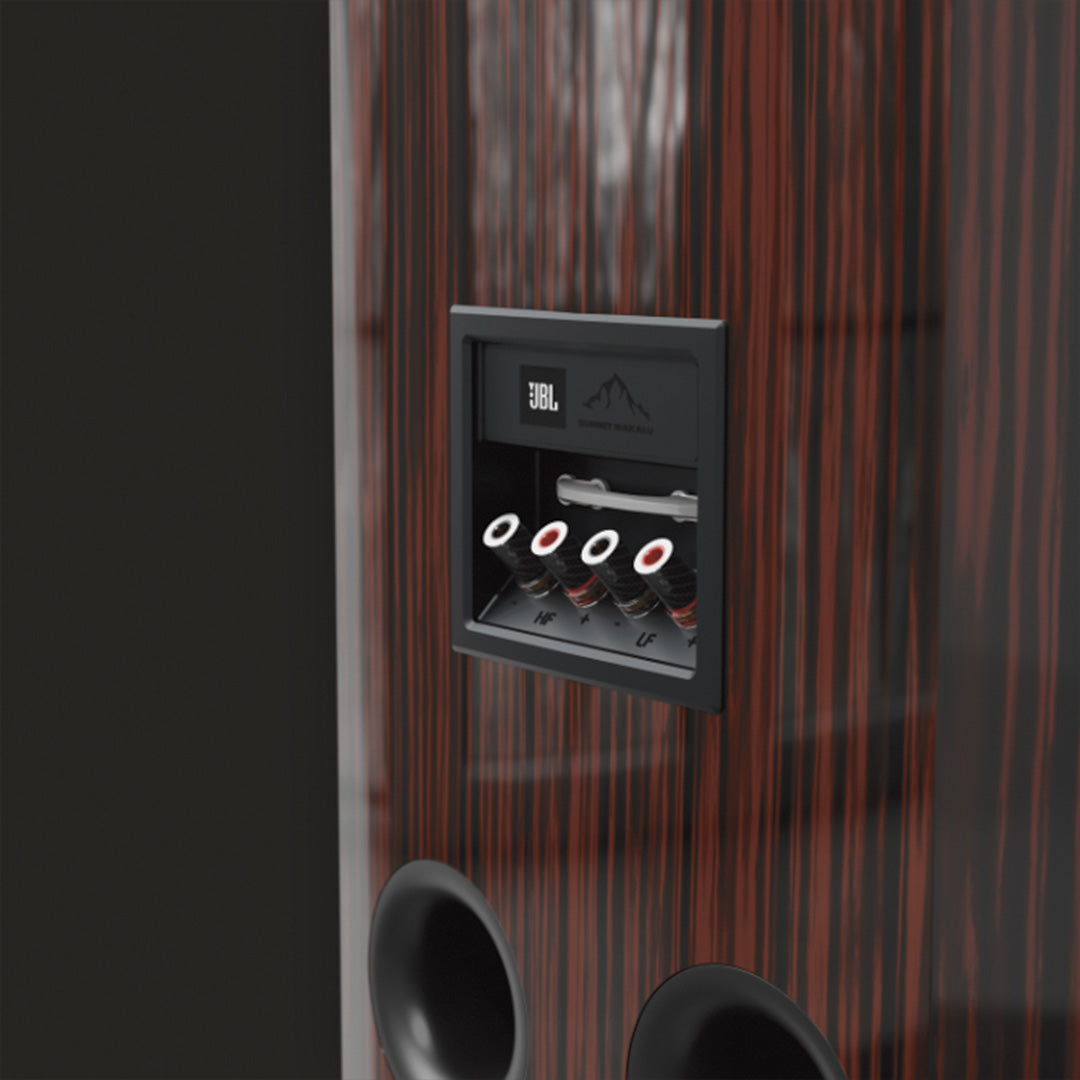

• MultiCap™ crossover with single-wire and bi-amp/bi-wire options
• Internal cabinet construction with offset multi-bracing and damped curved walls
• JBL | IsoAcoustics® isolation feet for optimal vibration isolation
• High-gloss cabinet finish in black/platinum or ebony/gold

HDI HORN TECHNOLOGY

The Summit Makalu utilizes JBL's patented D2830K 3-inch dual-diaphragm, dual-motor compression driver, coupled to a precision-molded Sonoglass® HDI™ horn. This combination ensures high efficiency, low distortion and precise dispersion of high-frequency energy, resulting in an open and detailed soundstage with precise placement of instruments and voices.

HC4 HIGH POWER, LOW DISTORTION MID-BASS AND WOOFER

The sound foundation is provided by an 8-inch mid-bass driver and a 12-inch woofer, both built on robust molded frames. They use JBL's exclusive triple-layer Hybrid Carbon Cellulose Composite (HC4) cones, combining carbon fiber and pure paper pulp with a core of closed-cell foam. This construction provides optimal rigidity, low mass and high damping, enabling powerful bass reproduction with extreme precision and low distortion even at high sound pressures.

MULTICAP™ CROSSOVER FOR OPTIMAL SIGNAL DISTRIBUTION

The Summit Makalu features JBL's MultiCap™ crossover network, which replaces large capacitors with multiple smaller ones to reduce ESR (Equivalent Series Resistance). The result is higher signal throughput, improved power handling, lower distortion and greater dynamic range. With both single-wire and bi-amp/bi-wire connectivity options, the system can be optimized for a variety of amplifier configurations.

ACOUSTIC OPTIMIZED CABINET WITH RESONANCE CONTROL

The cabinet construction is designed with internal offset multi-bracing and curved walls to minimize standing waves and internal resonances. Heavy damping ensures a neutral acoustic environment where the drivers can perform at their best. The cabinet is available in high-gloss black with Summit platinum accents or high-gloss ebony veneer with Summit gold accents, both with carbon fiber inserts around the baffle.

ISOLATION FOR MAXIMUM CLARITY AND BASS CONTROL

The bottom of each speaker is equipped with specially designed JBL | IsoAcoustics® feet that effectively decouple the cabinet from the floor. This vibration isolation reduces unwanted energy transfer, resulting in tighter bass, improved stereo perspective and greater depth in the soundstage.

TECHNICAL SPECIFICATIONS

Type: 3-way floorstanding reference speaker
Treble: JBL D2830K 3" dual-diaphragm, dual-motor compression driver
Horn: Sonoglass® High-Definition Imaging (HDI™) horn
Midrange: 8" cast frame, triple-layer HC4 cone
Bass: 12" cast frame, triple-layer HC4 cone
Crossover: JBL MultiCap™ network, single-wire and bi-amp/bi-wire compatible
Cabinet: Curved walls, multi-braced and damped construction, carbon fiber baffle trim
Feet: JBL | IsoAcoustics® adjustable acoustic isolation feet
Finish: High-gloss black/platinum or high-gloss ebony/gold
